Ce Approved Small Hydraulic Crawler Excavator Xn16
- USD 1.15 /Unit
- 1 Unit
- 19 Unit
- 9 days

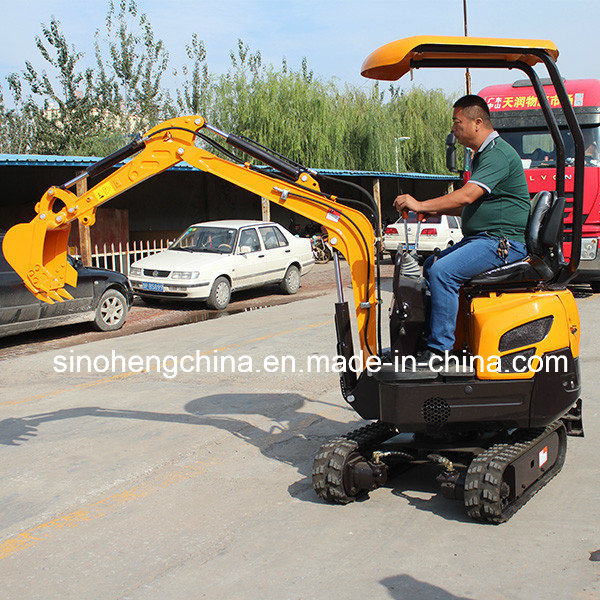

CE Approved Small Hydraulic Crawler Excavator XN16
Small Hydraulic CrawlerExcavator Description :
This mini digger crawlerexcavator is desiged for small works ,small for projects ,in garden ,farmland ,municipal works ,vegetable greenhouse ,digging trench .It with small engine ,simple design ,easy to maintaince .
XN16 Small Excavator Details :
Mini Excavator Attachments :
Crawler excavator XN16 Specification:
Model | XN16 |
Operating Weight | 16000kg |
Digging bucket capacity | 0.045cbm/400kg |
Digging bucket width | 400mm, can add narrow bucket is 200mm |
Engine | Yanmar (3TNV70-S) |
Rated power | 10.3kw/2200/r/min |
Displacement | 0.854L |
Bore stroke | three cylinder, water cool |
Mainpump | KDK |
Valve | PERMCO |
Displacement | 6.8ml/r |
Swing motor | EATON |
Traveling motor | DONGHYUAN |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 3160x1040x2377mm |
Total length of track on land | 1670mm |
Platform ground clearance | 460mm |
Platform back turning radius | 740mm |
Chassis width | 1130 mm |
Track width | 180 mm |
Chassis ground clearance | 460mm |
Track height | 320mm |
OPERATING RANGE | |
Max. Digging depth | 2150mm |
Max. Vertical digging depth | 1740mm |
Max. Diggine height | 3275mm |
Max. Dumping height | 2310mm |
Max. Digging radius on ground | 3470mm |
Min. Rotation radius | 1440mm |
Max. Upgrade height of bulldozer blade | 262 mm |
Max. Digging depth of bulldozer blade | 192mm |
Delivery Time :10 days of working ,after receive the receipt of advance payment of the buyer .
Packing&Shipping :Generally 5sets/20'GP ,it can also by LCL, according to the excavators quantity that customer needs .
Warranty :12 month or 1200 working hours.
Mini Excavators Shipping Packaging Photos :
FAQ:
What is the machine advantage?Why Ichoose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers .Each machine is carefully tested before send to customer.
How many units can be put in container?
A: 6units can be loaded in a20 GP, 12 units in a40GP.
Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1year. There are also aspare parts list recommended for 2years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
If you have interest in our mini excavators ,pls feel free to contact with us !
