China Best Mini Crawler Excavator Manufacturer

FOB Price: USD 6000.10 /Unit
Min.Order: 1 Unit
Supply Ability: 23 Unit
Delivery time： 29 days

Product Description

Mini Excavator Description :

This mini excavator is desiged for small works ,small for projects ,in garden ,farmland ,municipal works ,vegetable greenhouse ,digging trench .It with small engine ,simple design ,easy to maintaince

China Best Mini Crawler Excavator Manufacturer
850KG Mini Excavator XN08 Specification:

Model	XN08
Operating Weight	850kg
Digging bucket capacity	0.025cbm
Bucket width	380mm
Engine	KOOP
Rated power	8.6 kw/3600r/min
Displacement	0.211 L
Bore stroke	70x55
Main pump	ZANEDA
Displacement	6.8ml/r
Hydraulic system pressure	16 Mpa
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN (OMS-2450)
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770x896x1490 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
Diesel tank capacity	10 L
Hydraulic oil tank capacity	16L
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

Engine specification:

TYPE	Direct, single cylinder, 4strokes, air cool
COMBUSTION MODE	Director injector
BORE xSTROKE [mm(in)]	92x75(3.62x2.95)
DISPLACEMENT [L(cc)]	0.499(499)
COMPRESSION RATIO	19:1
RATED POWERKW/rpm	8.6/3600
RATER POWER HP/rpm	11.7/3600
RATED SPEED (rpm)	3600
STARTING TYPE	Electric
FUEL CAPACITY[L(US.gal)]	5.5(1.45)
LUB. CAPACITY[L(US.gal)]	1.65(0.44)
FUEL ConSUMPTION [g(ml)/kwh]
FUEL ConSUMPTION [g(ml)/kwh]	FUEL OIL MODEL0# (summer ), -10# (winter )diesel
LUB. MODEL	SAE10W30
DIMENSION cm (in)]	417x441x494 (16.42x17.36x19.45)
WEIGHT [kg(lbs)]	Hand start:50(110.2)
WEIGHT [kg(lbs)]	Electric start:55(121.3)
DIRECTION OF ROTATION	Clock wised.

Delivery Time :10 days of working ,after receive the receipt of advance payment of the buyer .
Packing&Shipping :Generally 6sets/20'GP ,it can also by LCL, according to the excavators quantity that customer needs .
Warranty :12 month or 1200 working hours.
Mini Excavators Shipping Packaging Photos :

China Best Mini Crawler Excavator Manufacturer

FAQ:
What is the machine advantage?Why Ichoose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers .Each machine is carefully tested before send to customer.
How many units can be put in container?
A: 6units can be loaded in a20 GP, 12 units in a40GP.
Excavator Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1year. There are also aspare parts list recommended for 2years, you can choose and order some parts sent with machine in advance or we recommend the list for you.

If you have interest in our mini excavators ,pls feel free to contact with us !
China Best Mini Crawler Excavator Manufacturer
JINAN SINOHENG import AND EXPORT CO., LTD
Contact Person: Estrella Wang
Tel: 0086-531-67803861

Looking forward to your any time inquiry !

Product Images

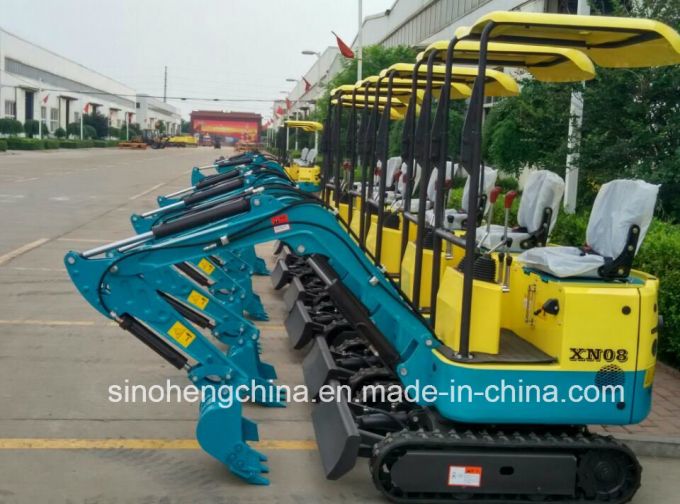

China Best Mini Crawler Excavator Manufacturer Images 1
