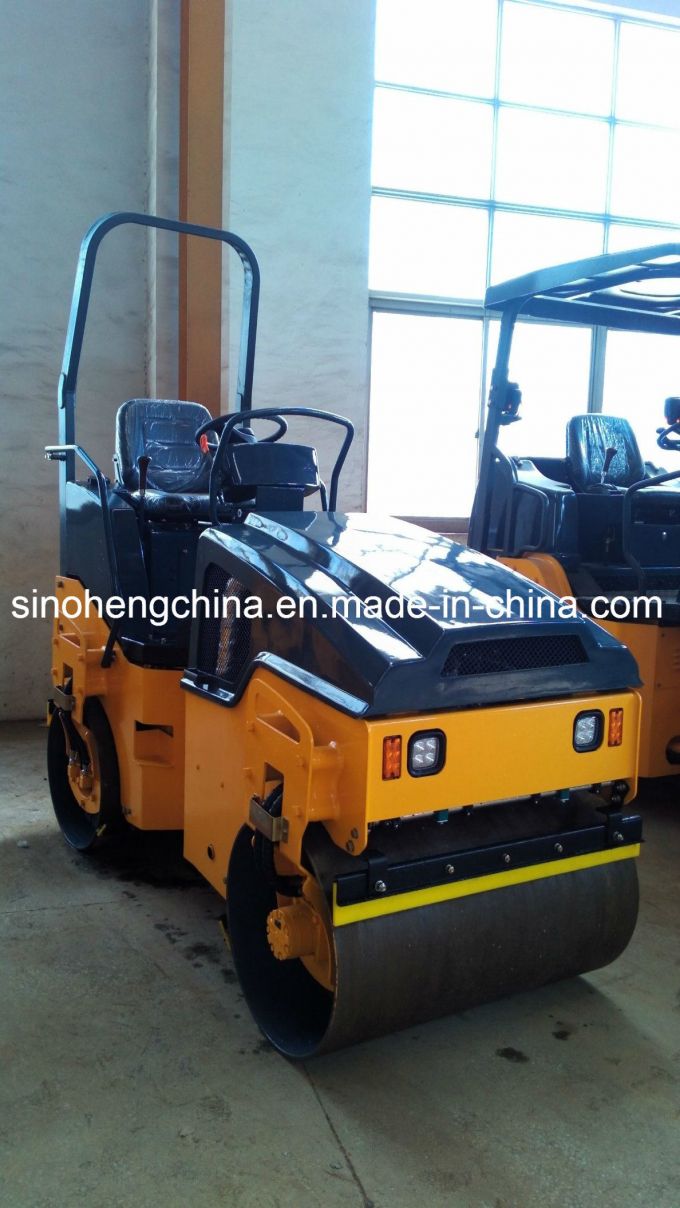

Full Hydraulic Double Drum Vibratory Roller with Ce Certificate Jm802h

Full Hydraulic Double Drum Vibratory Roller with CE Certificate JM802H2000KG Hydraulic Road Roller Compactor Applications
Compacting and repairing the general road base and asphalt pavement in narrow space, such as sidewalks, rural county road, parking area, stadium, trench, courtyard and so on. The highway road base and asphalt pavement are also suitable.
Main Features
1.Hydraulic double drum, two-speed range and stepless speed change .
2.Hydraulic double drumvibration, electronic controlled delayed starting of vibrationwith good compaction performance.
3.Hydraulic steering, articulated frame with flexible operation.
4.Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank.
5.Hydraulic service brake, electronic self-locking parking brake, safe and reliable.
6.The front cover can be turned up in a big angel for easily maintenance.
7.Equipped with imported famous brand hydraulic components with reliable performance.
8.A trailer is provided for convenient transportation.
9.imported Perkinsengine is optionalfor you.

Technical parameters

item	unit	JM802H
Operating Weight	kg	2000
Rolling width	mm	1000
Vibration frequency	Hz	65
Theoretical amplitude of vibration	mm	0.45
Exciting force	kN	21
Travel speed	km/h	0~4/0~8
Engine model		3M78
Engine power/speed	kW / r/min	18.4/2600
Overall dimensions (L*W*H):	mm	2600×1320×2580
