Hot Selling Double Drum Vibratory Road Machine Roller 4 Ton

  • Hot Selling Double Drum Vibratory Road Machine Roller 4 Ton
  • USD 30000.00 /Unit
  • 1 Unit
  • 32 Unit
  • 14 days
Product Description
YZC4/YZDC4 DOUBLE DRUM VIBRATORY ROAD ROLLER/ VIBRATORY OSCILLATORY ROAD ROLLER

Applications
Compacting and repairing the asphalt pavement, general road base, city road, Inter-city and township road and other projects etc. The vibratory oscillatory roller is more suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller.

Main Features
1) Mechanical vibration, two-speed gear shift. Hydraulic vibration (vibration roller), Rear drum hydraulic oscillatory or vibration (vibration oscillatory roller); Start-oscillatory by electric control, Hydraulic steering and light operation
2) Choose the vibration and oscillation function by electric control delay with simple operation (vibration oscillatory roller)
3) This roller has articulated frame, hydraulic steering, small turning radius and flexible drive.
4) Anticorrosive spray water system and 400L large capacity water tank and electric pressurized sprinkler.
5) Shock-proof shock absorber for long life and operate comfortable.
6) Close performance is extremely fine and work close building.
7) Choose trailer for four wheels according to user's requirements.
8) The supercharged diesel engine can be used on highland

Technical Data
YZC4 Vibratory RollerYZDC4 Oscillatory Roller
Operating weight4000kgOperating weight4100kg
Diameter of vibrating drumφ860mmRolling width1300mm
Rolling width1300mmCentrifugal force/ Torque40kN/13kN·m
Centrifugal force40KNTheoretical amplitude of oscillation0.35mm
Theoretical amplitude of vibration0.5mmOscillation frequency50HZ
Vibration frequency50HZMoving speed Range I/II2.5/7.5Km/h
Diesel engine model
Rated power
Rated speed
ZN490Q
33.5
2600

KW
r/min
Overall dimension3180*1460*2560mm
Product Images

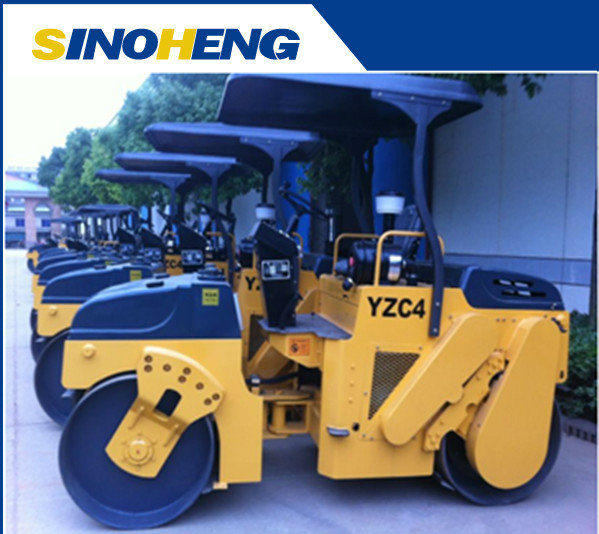

Hot Selling Double Drum Vibratory Road Machine Roller 4 Ton Images 1
