China Road Roller Supplier 800kg Vibratory Compactor Jms08h
- Price can be negotiated
- 1 Unit
- 30 Unit
- 23 days
Product Description
China Road Roller Supplier800kg Vibratory Compactor JMS08HApplications
Road, trenches, country and township roads and parking ground etc. compacting and repairing the asphalt pavement and general road base.
Main Features imported hydraulic components drive, hydraulic double drum drive, stepless variable speed. Electric vibration,flexible operation with high safety. Vertical vibration with great activating force and high efficiency. Front-drum hydraulic steering assure rolling compaction into narrow groundA trailer is provided for transportation Domestic or imported engines are optional (diesel engine or gasoline engine)Compacting force is up to 2t.
Technical Data
Road, trenches, country and township roads and parking ground etc. compacting and repairing the asphalt pavement and general road base.
Main Features imported hydraulic components drive, hydraulic double drum drive, stepless variable speed. Electric vibration,flexible operation with high safety. Vertical vibration with great activating force and high efficiency. Front-drum hydraulic steering assure rolling compaction into narrow groundA trailer is provided for transportation Domestic or imported engines are optional (diesel engine or gasoline engine)Compacting force is up to 2t.
Technical Data
Operating weight | 800 | kg | Vibration frequency | 60 | Hz | ||
Diameter of vibrating drum | φ400 | mm | Theoretical amplitude of vibration | 0.5 | mm | ||
Rolling width | 625 | mm | Moving speed range | 0-3.5 | km/h | ||
Static Linear Pressure (front/rear) | 50/70 | N/cm | Grade ability | 30% | |||
Centrifugal force | 20 | KN | Diesel engine model Rated rotation speed Rated power | KM186FAM 3000 5.7 | r/min kw | ||
Overall dimensions L W H | Open:2450x680x1200mm Folding:1350x680x1850mm |

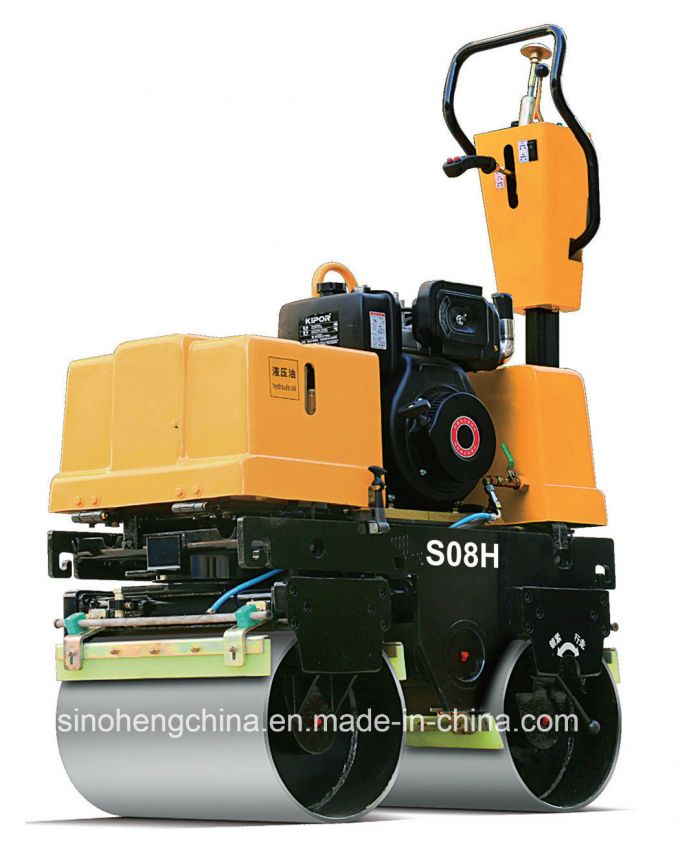

Product Images
