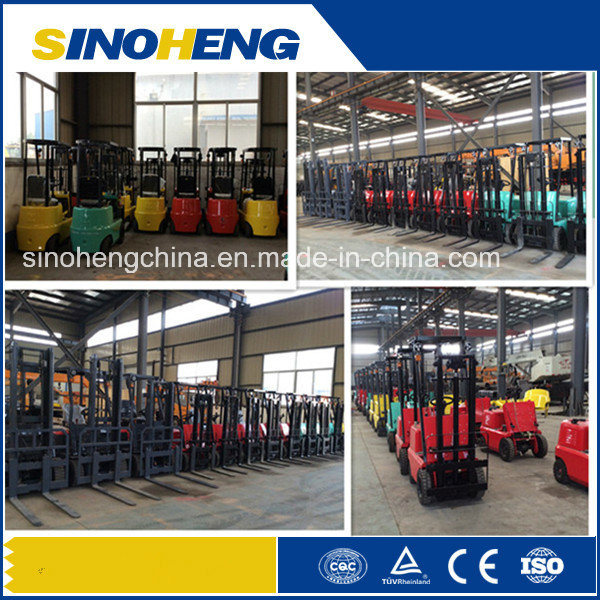

Mini Electric Forklift with CE Certificate Cpd500

Mini Electric Forklift with CE certificate CPD500

Specifications
1.Mini electric forklift with small turning radius of 1200mm which can pass through 760mm width aisle.
2.No pollution,energy efficiency and environmental protection.
3.Super low cost,power consumption:3kw/h per day.
4.Own 22 national patents,more competitive and imitation is prohibited.
5.Various optional tools can meeting customer's different working condition.

Model	CPD500
Powertype	Electric
Operatingmode	Seatedtype
Ratedload	500kg
Max.liftingheight	2000mm
Min.turningradius	1200mm
Doorframetiltangle	6/12degree
Liftspeed	480/460mm/s
Downspeed	400mm/s
Drivingspeed	12km/h
Loadcenterdistance	300mm
Turnedway	Electricpower(Mechanical)
Machineweight	725kg
Liftingmotorpower	2kw
Drivemotorpower	1.5kw
Motorbrake	Frontwheelfootbrake
Mingroundclearance	90mm
Overalldimension	1450*742*1580mm
Forklength	1070mm
Forkwidth	93mm
Max.extendwidth	700mm
Wheelbase	890mm
wheeltread	620/580
Fronttyresize	15*4½-8
Reartyresize	3.50-5
Battery	12v/170ah*4
Workingtimeforonecharge	Lessthan8h
Inputvoltage	220v
Chargingtime	8/10h
