Hot Sale Electric Forklift Truck with Battery (SH35C)
- USD 15000.00 /Unit
- 1 Unit
- 49 Unit
- 30 days
Product Description
3.5 Ton Battery, electric Forklift with competitive price (CPD35C)
1. High Capacity Battery
2. Comfortable Control
3. High Performance Motor
4. High quality Ge/curtis
Electric Controller
5. Safe Over-guard
6. Caution Light
7. Option AC Electric Control
Technical Parameters:
1. High Capacity Battery
2. Comfortable Control
3. High Performance Motor
4. High quality Ge/curtis
Electric Controller
5. Safe Over-guard
6. Caution Light
7. Option AC Electric Control
Technical Parameters:
Product Name | 3.5Ton DC Counterbalance Electric Forklift Truck | |
Model | SH35C | |
Load capacity (kg) | 3500 | |
Load center (mm) | 500 | |
Power type | Battery | |
Max. lifting speeds ( with load ) mm/s | 285 | |
Max. driving speeds ( with/without load ) km/h | 13.5/15 | |
Max. towing ( with/without load ) kn | 13 | |
Gradeability (with/without load ) % | 15 | |
Lifting height (mm) | 3000 | |
Free lift (mm) | 75 | |
Tilting angles ( forward-backward ) (.) | 6/12 | |
Min. turning radius (mm) | 2400 | |
Min. right angle aisel width ( mm ) | 3900 | |
Min. under-clearance (mm) | 140 | |
Dimension | Overall length (including fork)mm | 3745 |
Overall width ( mm ) | 1240 | |
Overall height (mast lowered )mm | 2200 | |
Overall height (mast extend )mm | 4260 | |
Overall height to overhead guard (mm) | 2200 | |
Fork width (mm) | 125 | |
Fork thickness (mm) | 50 | |
Fork length (mm) | 1070(1220) | |
Fork overhang (mm) | 495 | |
Wheel base (mm) | 1700 | |
Tread | Front tread (mm) | 1000 |
Rear tread (mm) | 980 | |
Tyre | Front tyre | 28 x 9 - 15 |
Rear tyre | 18 x 7 -8 | |
Total weight (kg) | 5160 | |
Motor | Traction motor | XQ-10-1C |
Lifting motor | XQD-13-3S | |
Battery | Battery type | 40-DA-500 |
Battery voltage /Capacity V/Ah | 80/500 |

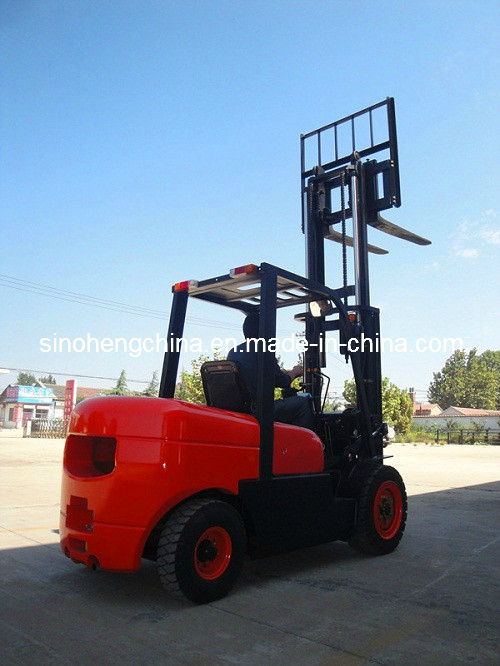

Product Images
