6 Ton Diesel Forklift Truck with Good Quality Cpcd60
- USD 20000.00 /Unit
- 1 Unit
- 72 Unit
- 19 days
Product Description
6 ton Diesel Forklift Truck with competitive price and good quality1. Powerful Engine
Engine for optional: CHAOCHAI6102-BG, ISUZU 6BG1, PERKENS 1104D-TA(EUROIII)
2. Hydraulic Gear-box
3. Control Valve
4. Steering Bridge
5. Double Front Wheel
6. Caution Light
We are best forklift truck supplier and manufacturer , you could enjoy high quality forklift and competitive price, best service, welcome to visit our forklift factory.Technical Parameters:
Engine for optional: CHAOCHAI6102-BG, ISUZU 6BG1, PERKENS 1104D-TA(EUROIII)
2. Hydraulic Gear-box
3. Control Valve
4. Steering Bridge
5. Double Front Wheel
6. Caution Light
We are best forklift truck supplier and manufacturer , you could enjoy high quality forklift and competitive price, best service, welcome to visit our forklift factory.Technical Parameters:
Product Name | 6 Ton Diesel Forklift Truck | |
Model | SH60 | |
Load capacity (kg) | 6000 | |
Load center (mm) | 500 | |
Power type | Diesel | |
Max. lifting speeds ( with load ) mm/s | 330 | |
Max. driving speeds ( with/without load ) km/h | 22/26 | |
Max. towing ( with/without load ) kn | 53 | |
Gradeability (with/without load ) % | 20/27 | |
Lifting height (mm) | 3000 | |
Free lift (mm) | 210 | |
Tilting angles ( forward-backward ) (.) | 6/12 | |
Min. turning radius (mm) | 3250 | |
Min. right angle aisel width ( mm ) | 3090 | |
Min. under-clearance (mm) | 230 | |
Dimension | Overall length (including fork)mm | 4735 |
Overall width ( mm ) | 1995 | |
Overall height (mast lowered )mm | 2500 | |
Overall height (mast extend )mm | 4420 | |
Overall height to overhead guard (mm) | 2420 | |
Fork overhang (mm) | 590 | |
Wheel base (mm) | 2250 | |
Tread | Front tread (mm) | 1470 |
Rear tread (mm) | 1700 | |
Tyre | Front tyre | 8,25-15-14 |
Rear tyre | 8,25-15-14 | |
Total weight (kg) | 8640 | |
Fork width (mm) | 150 | |
Fork thickness (mm) | 60 | |
Backrest height (mm) | 1365 | |
Fork length (mm) | 1220 | |
Engine | Engine model | Chaochai6102-BGQC4112G |
Rate power (KW) | 80.9/70 | |
Rotate speed at Rate power (rpm) | 2500/2300 | |
Max. torque (nm) | 353/370 | |
Rotate speed at max torque (rpm) | 1650/1600-1800 | |
Battery | 2-12 V/80AH | |
Type of power shift | Tor-non |

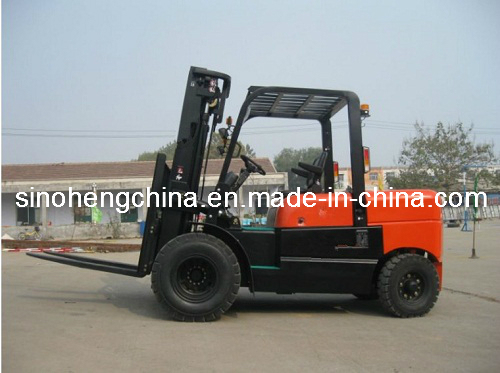

Product Images
