3 Ton Gas/LPG Forklift Truck (SH30FR)

  • 3 Ton Gas/LPG Forklift Truck (SH30FR)
  • USD 10000.00 /Unit
  • 1 Unit
  • 22 Unit
  • 24 days
Product Description
3 Ton Gas/LPG Forklift Truck (SH30FR)3 ton Gas/LPG Forklift Truck CPQYD30FR

1. Safe LPG Unit
2. Seat With Satety Belt And Steady Bar
3. Mitsubishi Engine
4. Safe Over-guard
5. Hydraulic Gear-box
6. Control Valve
7. For LPG/Gasoline Forklift, you can choose Mitsubishi engine, Nissan engine and Chinese engine.

We can supply to you good product with good performance and competitive.

Technical Parameters:
Product NameCounterbalance Gasoline /LPG Powered Forklift Truck(FR series )
ModelSH30FR
Load capacity (kg)3000
Load center (mm)500
Power typeGasoline/LPG
Max. lifting speeds ( with load ) mm/s400
Max. driving speeds ( with/without load ) km/h18/20
Max. towing ( with/without load ) kn15,5/10,5
Gradeability (with/without load ) %15/20
Lifting height (mm)3000
Free lift (mm)80
Tilting angles ( forward-backward ) (.)6/12
Min. turning radius (mm)2500
Min. right angle aisel width ( mm )2110
Min. under-clearance (mm)135

Dimension
Overall length (including fork)mm3800
Overall width ( mm )1230
Overall height (mast lowered )mm2110
Overall height (mast extend )mm4270
Overall height to overhead guard (mm)2110
Fork overhang (mm)465
Wheel base (mm)1700
TreadFront tread (mm) 1000
Rear tread (mm)970
TyreFront tyre28 x 9-15
Rear tyre6,50-10
Total weight (kg)4320
Fork width (mm)125
Fork thickness (mm)45
Backrest height (mm)1225
Fork length (mm) 1220


Engine
Engine modelMITSUBISHI 4G64-31ZG/CHINESE GQ4Y
Rate power (KW)37/36
Rotate speed at Rate power (rpm)2650/2400
Max. torque (nm)≥148
Rotate speed at max torque (rpm)1800-1900
Type of power shiftTor-non
Product Images

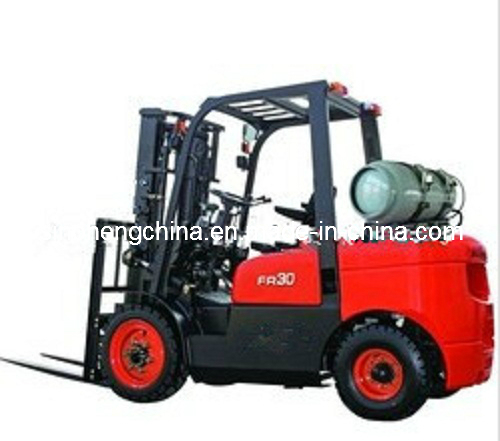

3 Ton Gas/LPG Forklift Truck (SH30FR) Images 1
