Product Description
4 ton Diesel Forklift Truck with good price , hot sale product SH40FR1. The center of gravity is reduced small in turning raduius, with good stability.
2. Seat with safety belt and steady bar
3. Safe over-guard
4. Powerful engine
5. Dual air filter
6. Popular counterweight
7. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.
We can supply to you good product and good service, welcome to visit our factory.4 Ton Diesel Forklift, Lifting Equipment Sh40frTechnical Parameters:
Product Name4 ton Diesel Forklift Truck
ModelSH40FR
Load capacity (kg)4000
Load center (mm)500
Power typeDiesel
Max. lifting speeds ( with load ) mm/s300
Max. driving speeds ( with/without load ) km/h18/20
Max. towing ( with/without load ) kn16,5/11,5
Gradeability (with/without load ) %15/20
Lifting height (mm)3000
Free lift (mm)80
Tilting angles ( forward-backward ) (.)6/12
Min. turning radius (mm)2720
Min. right angle aisel width ( mm )2320
Min. under-clearance (mm)135

Dimension
Overall length (including fork)mm4100
Overall width ( mm )1230
Overall height (mast lowered )mm2110
Overall height (mast extend )mm4270
Overall height to overhead guard (mm)2110
Fork overhang (mm)470
Wheel base (mm)1900
TreadFront tread (mm)1060
Rear tread (mm)970
TyreFront tyre250-15
Rear tyre6,50-10
Total weight (kg)4900
Fork width (mm)150
Fork thickness (mm)50
Backrest height (mm)1225
Fork length (mm) 1220


Engine
Engine model498/4C6-65M
Rate power (KW)45/48
Rotate speed at Rate power (rpm)2500/2450
Max. torque (nm)193/215
Rotate speed at max torque (rpm)1800/1700
Type of power shiftTor-non
Product Images

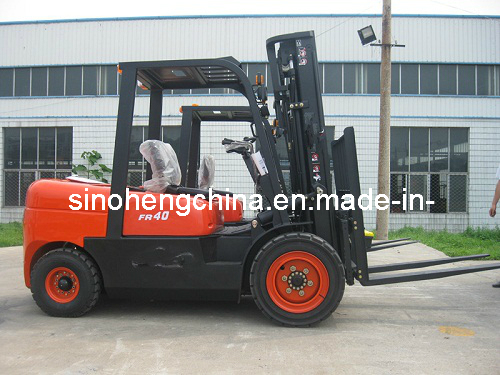

4 Ton Diesel Forklift, Lifting Equipment Sh40fr Images 1
