Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift Truck

  • Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift Truck
  • USD 10000.20 /Unit
  • 1 Unit
  • 62 Unit
  • 25 days
Product Description
SH30FR 3Ton Lift Equipment Diesel Engine Forklift TruckForklift Truck Descriptions :
Forklift truck is widely using for lifting cargos in warehouse and out of house ,become user's good helper. The forklift generally has three kinds type: diesel forklift ,electric forklift and LPG forklift truck. Generally the electric forklift hot selling to South american countries ,LPG forklift to Eastsouth countries ,Africa users use the diesel forklift is very much. Different countries like different type forkift trucks, all the clients bought our forklift trucks ,said our forklift trucks with good quality and our excellent services they very like ,these forklift trucks has been their making money tools .Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift TruckForklift Technical Parameters:
Product NameDiesel Forklift
ModelSH30FR
Load capacity (kg)3000
Load center (mm)500
Power typeDiesel
Max. lifting speeds (with load )mm/s400
Max. driving speeds (with/without load )km/h18/20
Max. towing (with/without load )kn15,5/10,5
Gradeability (with/without load )%15/20
Lifting height (mm)3000
Free lift (mm)80
Tilting angles (forward-backward )(.)6/12
Min. turning radius (mm)2500
Min. right angle aisel width (mm )2110
Min. under-clearance (mm)135

Dimension
Overall length (including fork)mm3800
Overall width (mm )1230
Overall height (mast lowered )mm2110
Overall height (mast extend )mm4270
Overall height to overhead guard (mm)2110
Fork overhang (mm)465
Wheel base (mm)1700
TreadFront tread (mm)1000
Rear tread (mm)970
TyreFront tyre28 x9-15
Rear tyre6,50-10
Total weight (kg)4320
Fork width (mm)125
Fork thickness (mm)45
Backrest height (mm)1225
Fork length (mm)1220


Engine
Engine model490
Rate power (KW)39
Rotate speed at Rate power (rpm)2650
Max. torque(nm)157
Rotate speed at max torque (rpm)1980
Type of power shiftTor-non
Forklift Features :
1. Forklifts by CE certificate and we have profesional technical person to design and manufacture the forklift .
2. The center of gravity is reduced small in turning raduius, with good stability.
3. Seat with safety belt and steady bar
4. Safe over-guard
5. Powerful engine
6. Dual air filter
7. Popular counterweight
8. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.
Forklift Truck Details :
Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift Truck
Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift TruckLooking forward to your any time inquiry, let you enjoy our excellent service and best price !Contact informations :
JINAN SINOHENG import AND EXPORT CO.,LTD
Contact Person :Estrella Wang
Tel :0086-531-67803861
Product Images

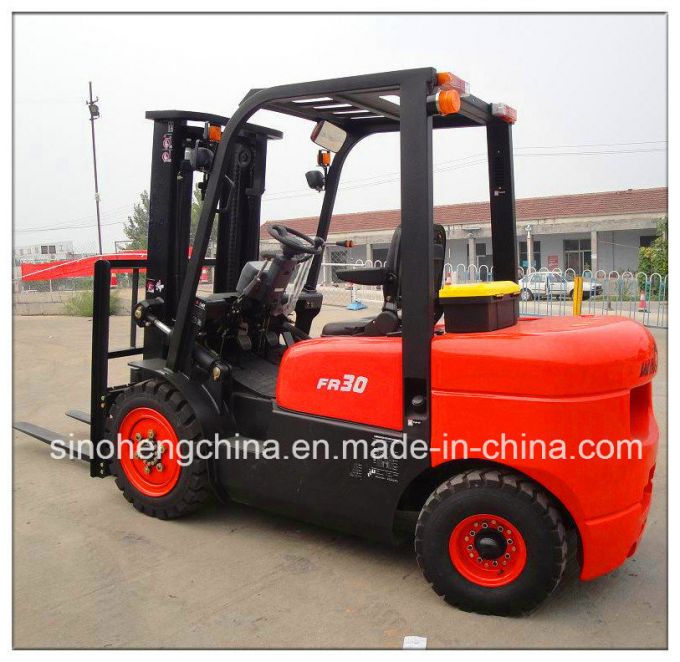

Sh30fr 3 Ton Lift Equipment Diesel Engine Forklift Truck Images 1
