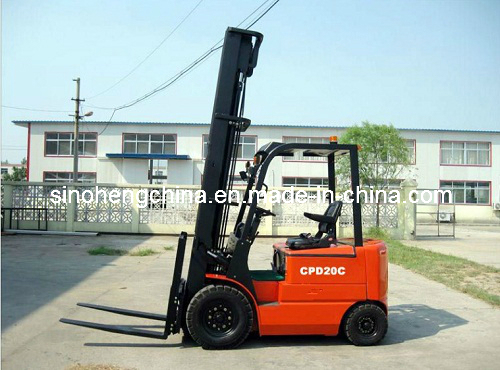

2 Ton Mini Battery Electric Forklift Truck for Sale Cpcd20c

2 Ton Battery, electric Forklift CPD20C1. High Capacity Battery
2. Comfortable Control
3. High Performance Motor
4. High quality Ge/curtis
Electric Controller
5. Safe Over-guard
6. Caution Light
7. Option AC Electric Control
Technical Parameters:

Product Name		2Ton DCbattery Forklift Truck
Model		CPD20C
Load capacity (kg)		2000
Load center (mm)		500
Power type		Battery
Max. lifting speeds ( with load ) mm/s		250
Max. driving speeds ( with/without load ) km/h		12,5/14
Max. towing ( with/without load ) kn		10
Gradeability (with/without load ) %		15
Lifting height (mm)		3000
Free lift (mm)		60
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		2200
Min. right angle aisel width ( mm )		2050
Min. under-clearance (mm)		110
Dimension	Overall length (including fork)mm	3350
	Overall width ( mm )	1160
	Overall height (mast lowered )mm	2130
	Overall height (mast extend )mm	4040
Overall height to overhead guard (mm)		2130
Fork width (mm)		100
Fork thickness (mm)		40
Fork length (mm)		920(1070)
Fork overhang (mm)		451
Wheel base (mm)		1550
Tread	Front tread (mm)	970
	Rear tread (mm)	950
Tyre	Front tyre	7.00-12
	Rear tyre	18 x 7 -8
Total weight (kg)		3950
Motor	Traction motor	XQ-8
	Lifting motor	XQD-10-3S
Battery	Battery type	D-600(700)
	Battery voltage /Capacity V/Ah	48/600(700)
