5 Tons Forklift Truck with Diesel Engine

- USD 1.00 /Unit
- 1 Unit
- 81 Unit
- 12 days
Product Description
5 tons Diesel Forklift Truck SH50F1. Powerful Engine
2. Hydraulic Gear-box
3. Control Valve
4. Driving Bridge
5. Steering Bridge
6. Caution Light
The forklift with CE certificate, and exquisite design, you can enjoy competitive price and best service.
Technical Parameters:
2. Hydraulic Gear-box
3. Control Valve
4. Driving Bridge
5. Steering Bridge
6. Caution Light
The forklift with CE certificate, and exquisite design, you can enjoy competitive price and best service.

Product Name | 5 Ton Counterbalance Diesel Forklift Truck | |
Model | SH50F | |
Load capacity (kg) | 5000 | |
Load center (mm) | 500 | |
Power type | Diesel | |
Max. lifting speeds ( with load ) mm/s | 375 | |
Max. driving speeds ( with/without load ) km/h | 20/24 | |
Max. towing ( with/without load ) kn | 31/18 | |
Gradeability (with/without load ) % | 15/20 | |
Lifting height (mm) | 3000 | |
Free lift (mm) | 150 | |
Tilting angles ( forward-backward ) (.) | 6/12 | |
Min. turning radius (mm) | 3000 | |
Min. right angle aisel width ( mm ) | 2750 | |
Min. under-clearance (mm) | 170 | |
Dimension | Overall length (including fork)mm | 4350 |
Overall width ( mm ) | 1400 | |
Overall height (mast lowered )mm | 2330 | |
Overall height (mast extend )mm | 4265 | |
Overall height to overhead guard (mm) | 2330 | |
Fork overhang (mm) | 565 | |
Wheel base (mm) | 2150 | |
Tread | Front tread (mm) | 1180 |
Rear tread (mm) | 1190 | |
Tyre | Front tyre | 300-15 |
Rear tyre | 7,00-12 | |
Total weight (kg) | 6800 | |
Fork width (mm) | 150 | |
Fork thickness (mm) | 55 | |
Backrest height (mm) | 1275 | |
Fork length (mm) | 1070(1220) | |
Engine | Engine model | LR4A3/4JR3 |
Rate power (KW) | 59 | |
Rotate speed at Rate power (rpm) | 2400/2200 | |
Max. torque (nm) | 275/300 | |
Rotate speed at max torque (rpm) | 1600/1800 | |
Type of power shift | Tor-non |

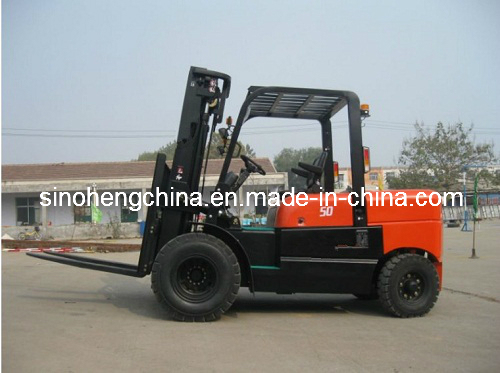

Product Images
