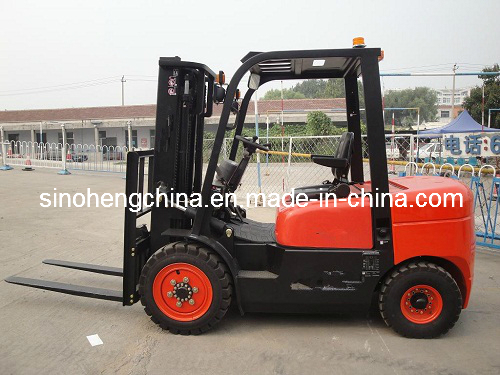

3.5 T Sh35fr Diesel Forklift Truck

3.5t SH35FR Diesel Forklift Truck1. The center of gravity is reduced small in turning raduius, with good stability.
2. Seat with safety belt and steady bar
3. Safe over-guard
4. Powerful engine
5. Dual air filter
6. Popular counterweight
7. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.Technical Parameters:

Product Name		Diesel Forklift Truck
Model		SH35FR
Load capacity (kg)		3500
Load center (mm)		500
Power type		Diesel
Max. lifting speeds ( with load ) mm/s		375
Max. driving speeds ( with/without load ) km/h		17/19
Max. towing ( with/without load ) kn		16/11
Gradeability (with/without load ) %		15/20
Lifting height (mm)		3000
Free lift (mm)		80
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		2500
Min. right angle aisel width ( mm )		2110
Min. under-clearance (mm)		135
Dimension	Overall length (including fork)mm	3800
	Overall width ( mm )	1230
	Overall height (mast lowered )mm	2110
	Overall height (mast extend )mm	4270
Overall height to overhead guard (mm)		2110
Fork overhang (mm)		465
Wheel base (mm)		1700
Tread	Front tread (mm)	1000
	Rear tread (mm)	970
Tyre	Front tyre	28 x 9-15
	Rear tyre	6,50-10
Total weight (kg)		4580
Fork width (mm)		125
Fork thickness (mm)		50
Backrest height (mm)		1225
Fork length (mm)		1220
Engine	Engine model	490
	Rate power (KW)	39
	Rotate speed at Rate power (rpm)	2650
	Max. torque (nm)	157
	Rotate speed at max torque (rpm)	1980
Type of power shift		Tor-non
