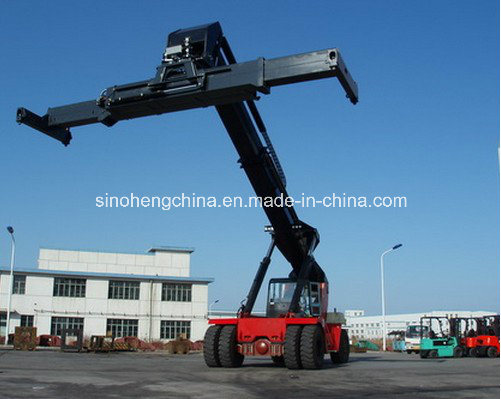

Top Loader for 5 Floors Empty Containers Crs450abz5

Logistics equipment empty container Top Loader ( reach stacker ) CRS450ABZ5 is specially designed for the international standard 20' and 40' container and the main purpose of these equipments are used to stack or carry the container in port and ground. Comparing with the standard forklifts, it features maneuverability, easy operation, better stability, lower tyre press, and high stage of stacking and high stacking efficiency. The straddling container work is especially suitable for operation of container in middle-smaller harbor, railway station and road station, it can also be used in the large container port as a assistant equipment.

The reach stacker CRS450ABZ5 consists of heavy-duty chassis, telescopic beam and hanging spreader. The chassis consists of engine, power-shift transmission, front axle, rear axle, steering system, cab, truck frame, counter balance, tyres etc. The telescopic beam consists of telescopic cylinder, beam up-down cylinder, beam support etc. The spreader consists of circumrotating structure, up frame, link frame, base frame, telescopic frame, telescopic cylinder, vibration-avoiding cylinder, side-shift cylinder twist lock cylinder etc.

The reach stacker featuring with telescopic, right-left circumrotating spreader, is suitable for the container load and unload work. When stacking the container, the reach stacker is not limited to vertically operation, diagonally work is also available. When lifting up, the spreader can be circumrotated to facilitate through narrow alleyway. By the way, the spreader has side-shift 800mm in each side for couple in lifting containers, so as to increase the efficiency. The reach stacker can also be used in bad condition container ground.

The telescopic beam can change breadth with load. Picking and stacking container are completed by the beam's telescope and breadth change. When the beam extends out and up-down cylinder extends out, the speed of lifting is fast. When lowering with lock in, can get a fast lowering speed. While working, it can affect walk, breadth change, and beam telescope in same time so as to gain high efficiency.

Item

Unit

Data

Rated capacity

Distance from 1st row

1900mm

5CRS

Kg

31000

4CRS

45000

3850mm

4CRS

31000

6350mm

3CRS

15000

Max lifting height

mm

14850

Min ground clearance

mm

400

Min turning radius

mm

8200

Lifting speed (unload/load)

mm/s

380/240

Lowering speed (unload/load)

mm/s

300/250

Traveling speed (unload)

Forward /backward

1 shift

Km/h

4/4

2 shift

9/9

3 shift

16/16

4 shift

25/25

Max. gradient(unload/load)

30/15

Brake distance

Unload 20Km/h

m

≤ 7

Load 20Km/h

≤ 3.5

Beam

Max. angle

deg

60

Max. spread

mm

6800

Service weight

Kg

73000

Tyre

Model

Front

18.00-25-40PR

Rear

18.00-25-40PR

Air pres

Front

MPa

9.00

Rear

9.00

Engine

Type

M11-C330

Manufacturer

CUMMINS

Displacement

cc

10800

Rated output

Kw/RPM

246/2100

Max. Torque

N. m/RPM

1458/1300

Transmission box

Type

14.7HR36432 fixed shaft

Manufacturer

DANA

Shift type

APC72 Auto-electric control gear shift

Gear shift

Forward 4/back 4

Speed ratio (F/R)

1st shift

5.814/5.814

2nd shift

2.422/2.422

3rd shift

1.379/1.379

4th shift

0.784/0.784

Driving axle

Manufacturer

KESSLER+CO

Model

D102 PL341/528-NLB8460

Speed ratio

Total

26.35

Parking brake

Forcipated brake

Service brake

Oil-cooled multi-disc brake

Spreader

Model

817

Manufacturer

ELME

Max. capacity

Kg

45000

Shift distance

mm

± 800

Rotation

°

+95/-185

Suitability

20" -40" international standard heavy container

Steering Axle

Type

Tran sward-cylinder axle

Hydraulic system

Pump

(PARKER)PAVC100B38R2A22 (PARKER)PAVC100B38R29A4A+GP2AND30AS

Valve

Initial valve

(PARKER)X104920

Main steering valve

(PARKER)M400LS-012

Balance valve set

(PARKER)91217414

Electric system

Working handle

(PARKER)IQAN-LL-4N5T

Control-indi module

(PARKER)IQAN-MDM

Length sensor

(PARKER)SL3010-PK1025MU/GS130

Angle sensor

(PARKER)530260/414307

Presure sensor

(PARKER)5020003

others

Include control module joint insert are all ELME (PARKER)
