2.5 Ton Diesel Forklift Truck with Competitive Price Sh25fr

- USD 1.00 /Unit
- 1 Unit
- 43 Unit
- 26 days
Product Description
2.5 ton China Biggest Forklift Seller with good forklfit and competitive price SH25FR1. The center of gravity is reduced small in turning raduius, with good stability.
2. Seat with safety belt and steady bar
3. Safe over-guard
4. Powerful engine
5. Dual air filter
6. Popular counterweight
7. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.
The forklift truck with exquisite design, supply to you good quality and competitive price, welcome to visit our factory.
Technical Parameters:
2. Seat with safety belt and steady bar
3. Safe over-guard
4. Powerful engine
5. Dual air filter
6. Popular counterweight
7. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.
The forklift truck with exquisite design, supply to you good quality and competitive price, welcome to visit our factory.

Product Name | 2.5 ton Diesel Forklift Truck | |
Model | SH25FR | |
Load capacity (kg) | 2500 | |
Load center (mm) | 500 | |
Power type | Diesel | |
Max. lifting speeds ( with load ) mm/s | 400 | |
Max. driving speeds ( with/without load ) km/h | 17/19 | |
Max. towing ( with/without load ) kn | 15/10 | |
Gradeability (with/without load ) % | 15/20 | |
Lifting height (mm) | 3000 | |
Free lift (mm) | 60 | |
Tilting angles ( forward-backward ) (.) | 6/12 | |
Min. turning radius (mm) | 2450 | |
Min. right angle aisel width ( mm ) | 2050 | |
Min. under-clearance (mm) | 110 | |
Dimension | Overall length (including fork)mm | 3605 |
Overall width ( mm ) | 1160 | |
Overall height (mast lowered )mm | 2095 | |
Overall height (mast extend )mm | 4080 | |
Overall height to overhead guard (mm) | 2095 | |
Fork overhang (mm) | 451 | |
Wheel base (mm) | 1640 | |
Tread | Front tread (mm) | 970 |
Rear tread (mm) | 970 | |
Tyre | Front tyre | 7,00-12 |
Rear tyre | 6,00-9 | |
Total weight (kg) | 3600 | |
Fork width (mm) | 122 | |
Fork thickness (mm) | 40 | |
Backrest height (mm) | 1000 | |
Fork length (mm) | 1070 | |
Engine | Engine model | 490 |
Rate power (KW) | 39 | |
Rotate speed at Rate power (rpm) | 2650 | |
Max. torque (nm) | 157 | |
Rotate speed at max torque (rpm) | 1980 | |
Type of power shift | Tor-non |

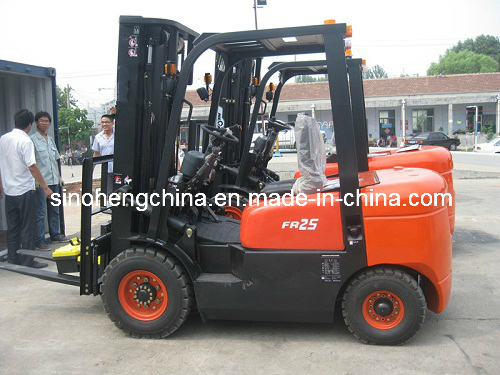

Product Images
