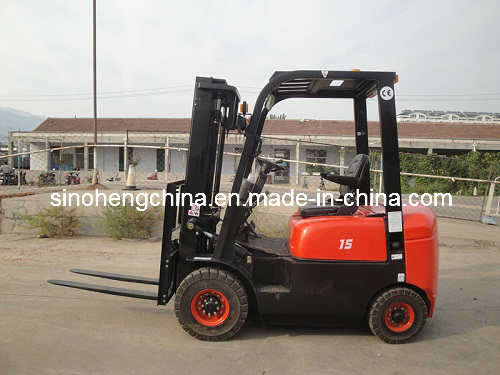

1.5 Ton Diesel Forklift Truck (CPCD15FR)

1.5 ton Diesel Forklift Truck CPCD15FR1. The center of gravity is reduced small in turning raduius, with good stability.
2. Seat with safety belt and steady bar
3. Safe over-guard
4. Powerful engine
5. Dual air filter
6. Popular counterweight
7. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.
We can export these product to Russia, Angola, Brazil, Argentina, Turkey, India, Iran, Saudi Arabia, Nigeria, Vietnam, and other countries.Technical Parameters:

Product Name		Diesel Forklift Truck
Model		CPCD15FR
Load capacity (kg)		1500
Load center (mm)		500
Power type		Diesel
Max. lifting speeds ( with load ) mm/s		500
Max. driving speeds ( with/without load ) km/h		14,5/15
Max. towing ( with/without load ) kn		14,4/8,4
Gradeability (with/without load ) %		15/20
Lifting height (mm)		3000
Free lift (mm)		70
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		2000
Min. right angle aisel width ( mm )		1770
Min. under-clearance (mm)		110
Dimension	Overall length (including fork)mm	3195
	Overall width ( mm )	1085
	Overall height (mast lowered )mm	1995
	Overall height (mast extend )mm	4030
Overall height to overhead guard (mm)		2085
Fork overhang (mm)		430
Wheel base (mm)		1450
Tread	Front tread (mm)	890
	Rear tread (mm)	920
Tyre	Front tyre	6,50-10-10
	Rear tyre	5,00-8-10
Total weight (kg)		2650
Fork width (mm)		100
Fork thickness (mm)		35
Backrest height (mm)		1000
Fork length (mm)		920
Engine	Engine model	485
	Rate power (KW)	30
	Rotate speed at Rate power (rpm)	2600
	Max. torque (nm)	131
	Rotate speed at max torque (rpm)	1700
Type of power shift		Tor-non
