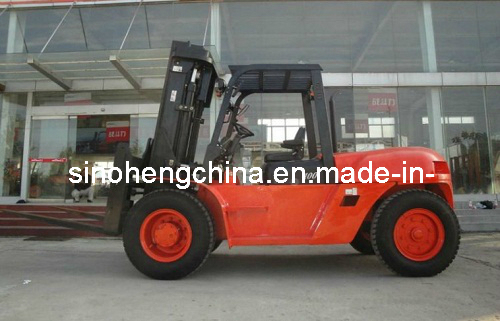

10 Ton China Diesel Forklift Truck Factory Sh100

10ton Diesel Forklift truck , China biggest Forklift Truck Factory
1. Powerful Engine
Engine for optional: CHAOCHAI6102-BG, ISUZU 6BG1, PERKENS 1104D-TA(EUROIII)
2. Hydraulic Gear-box
3. Control Valve
4. Steering Bridge
5. Double Front Wheel
6. Caution Light
These forklifts with CE certificate, and exquisite design, good performance, you can enjoy high quality product and competitive price.

Technical Parameters:

Product Name		10Ton Counterbalance Diesel Forklift Truck
Model		SH100
Load capacity (kg)		10000
Load center (mm)		600
Power type		Diesel
Max. lifting speeds ( with load ) mm/s		310
Max. driving speeds ( with/without load ) km/h		16/22
Max. towing ( with/without load ) kn		57
Gradeability (with/without load ) %		19/20
Lifting height (mm)		3000
Free lift (mm)		195
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		3900
Min. right angle aisel width ( mm )		3540
Min. under-clearance (mm)		250
Dimension	Overall length (including fork)mm	5480
	Overall width ( mm )	2275
	Overall height (mast lowered )mm	2850
	Overall height (mast extend )mm	4297
Overall height to overhead guard (mm)		2585
Fork overhang (mm)		718
Wheel base (mm)		2500
Tread	Front tread (mm)	1600
	Rear tread (mm)	1700
Tyre	Front tyre	9.00-20-14
	Rear tyre	9.00-20-14
Total weight (kg)		12510
Fork width (mm)		175
Fork thickness (mm)		80
Backrest height (mm)		1015
Fork length (mm)		1220
Engine	Engine model	Chaochai6102-BG
	Rate power (KW)	80.9
	Rotate speed at Rate power (rpm)	2500
	Max. torque (nm)	353
	Rotate speed at max torque (rpm)	1650
Battery		2-12 V/80AH
Type of power shift		Tor-non
