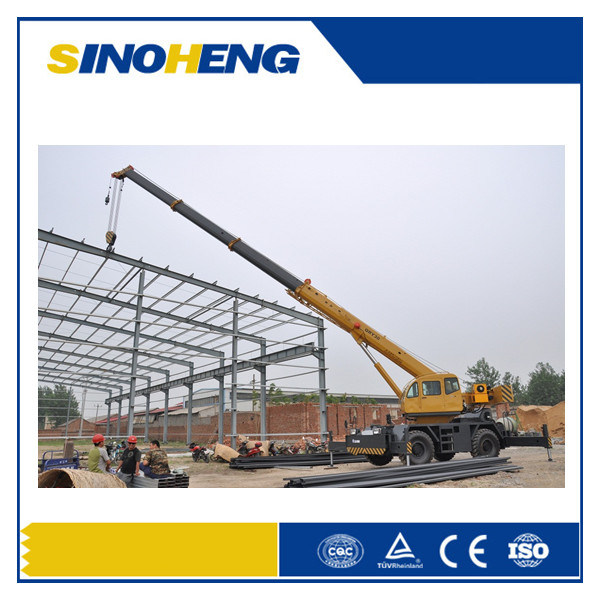

Manufacture Sinoheng 30 Ton Rough Terrain Crane

Off-road crane description
High quality30 Ton Rough Terrain Crane QRY30with CE and Ghost Certificate
Main Features:
1. Cummins ISDE230-30 Diesel Engine (169kW)
2. Overall dimension: 12100*3180*3770 (mm)
3. Max. total rated lifting load: 30t
4. Min. rated working radius: 3m
5. Max. lifting height (Fully-extended boom+Jib): 36m
6. Max. grade ability: 55%
7. Dead weight in travel state: 27720Kg

Max.liftingweight/range		30000kg/3m
Max.travelspeed		40km/h
Max.gradeability(tanθ)		55%(calculatedvalue)
Length*width*height		11750*2980*3600mm
TotalWeight		29.5t
WeightOverallweight		27800kg
Frontaxle		14380kg
Rearaxle		13420kg
Min.turningradius		4.1m(four-wheelsteering)
Boom		Foursectionsynchronouslytelescopicboom
Boomlength		9.18-27.78m
Boomextendingspeed		75s
Derrickingspeed		75s
Jib		Onesectionjib
length		7.2m
Mainwinch		Planetaryreducerdrivenbyhydraulicmotor
Singlelinespeed		80m/min
Wireropediameter/length		14mm/150m
Auxiliarywinch		Planetaryreducerdrivenbyhydraulicmotor
Singlelinespeed		80m/min
Wireropediameter/length		14mm/90m
Slewingspeed		2r/min
Turningradiusatswingtabletail		3520mm
Hydraulicsystem		Pump:double63/50,32/08dualgearedpumpinseriesconnection
		Controlvalve:multitandemvalvedrivenbypilotpressure
		Oilway:airoilcooler
		Hydraulicramcapacity:400L
Safetycontrolsystem	Safetymonitoring	Engineconditionmonitoring
		Gearboxconditionmonitoring
		Brakingsystempressuremonitoring
		Wholeelectricsystemfaultdetection
	Torquelimiterfunction	Workingconditionandsteelwireropemagnification
		Workingradius,boomlength,angleandmax.liftingheight
		Actualload,ratedloadandmomentalpercentage
		Derrickingcylinderpressure
Outrigger		Handoperation,H-shapedoutrigger
Outriggerspan(longitudinal×lateral)		6085×6500mm
Chassis		Rearengine,cabinleft,driverssteeringform4×4×4
Engine		EnginetypeCUMMINSelectriccontrolengineISDE230-30
		Max.output...169Kw/2500min-1(rpm)
		Max.torque900N.m/1400min-1(rpm)
Transmissionsystem		Electriccontrolgearbox
Steeringsystem		Hydraulicpowersteeringdevicecontroledbysteeringwheel
		Threemodels:
		Twofront-wheelsteering
		Four-wheelsteering,four-wheelcrabsteering
Suspensionsystem		Frontaxle^rigidsuspensioninstalledinframeofthecrane
		Rearaxle^suspensionwithhydrauliclockcylinderinstalledinswingpivot
Tyre		16.00-25(28PR)
Fueltankcapacity		310L

Packaging & Shipping
shipped by RORO or Bulk ship



Our Services

1.Warranty:1year
Withinwarranty,weofferthesparepartsfreeofcharge.Afterwarranty,weofferyoutheoriginal sparepartswithonlycostprice.


2.Wehaveaprofessionalengineersandtechniciansavailableatyourservice.
