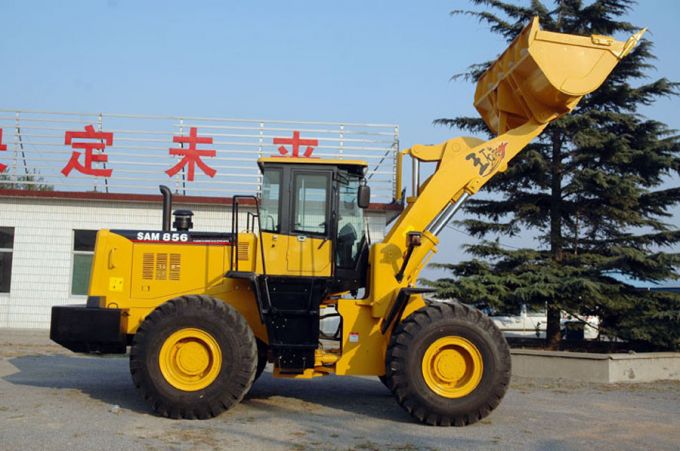

5 Ton /3m3/162kw Wheel Loader, Loader (SINOHENG856)

5 ton /3m3/162kw Wheel Loader, Loader (SINOHENG856)

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.
We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.
The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.
We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

performance	5.0 Ton Wheel Loader 856
	1	rated loading	5000kg
	2	overall weight	17100kg
	3	rated bucket capacity	3.0 m 3 `
	4	maximum tractive force	152KN
	5	maximum breakout force	≥ 170KN
	6	maximum grade ability	30
	7	maximum dump height	3150mm
	8	maximum dump reach	1250mm
	9	overall dimension (L × W × H)	7920 × 3050 × 3400mm
	10	minimum turning radius	6640mm
Engine	11	model	Wei chai 615G .220
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	6 _ 120 × 130mm
	14	rated power	162kw _ 2400r/min
	15	maximum torque	860N.m
	16	min fuel-consume ratio	≤ 215g/kw.h
Transmission system	17	Torque converter	YJ375
	18	gearbox mode	Countershaft power-shift
	19	gear shift	4 forward shift 4 reverse shift
	20	maximum speed	38km/h
Drive axles	21	main reducing spiral	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	3200mm
	24	wheel tread	2250mm
	25	ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95s ± 0.2s
	28	total time	10.95s ± 0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
	32	parking brake	flexible shaft operated external drum
Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
