6 Ton /3.3 M3/175kw Wheel Loader, Loader (SINOHENG867)

6 ton /3.3 M3/175KW Wheel Loader SINOHENG867

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, Backhoe loader WZ30-25 etc. The bucket can be changed into different attachment, such as fork, wood gripper, grass grasp, etc.

We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.

The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.

We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

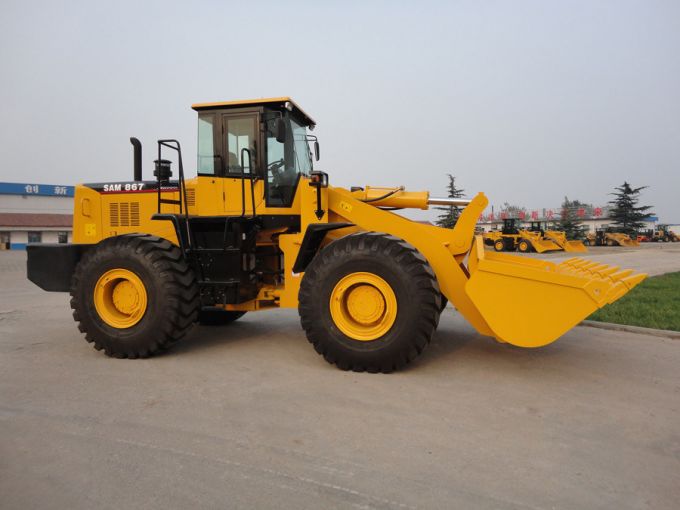

6 TON Wheel Loader SINOHENG867
rated load	6000kg
overall weight	19400kg
rated bucket capacity	3.3m³
max.tractive force	158KN
max.breakout force	204KN
max.grade ability	30°
max.dumping height	2950mm
max.dumping reach	1255mm
(L×W×H)overall dimention	8250×3100×3400mm
min.turning radius	6500mm
model	DHD10G0353(steyr)
type	inline water cooling dry cylinder injection
No.of cylinder-bore/stroke	6-126×130mm
rated power	175kw-2200r/min
max.torque	843N.m
min.fuel-consume ratio	≤220g/kw.h
max. speed	38km/h
gearbox mode	planetary
gears	2 forwards 1reverse

main reducing	bevel gear grade 1 reduction
decelerating	planetary reduction grade1
wheel base	3350mm
wheel tread	2250mm
min.ground clearance	450mm
system working pressure	18Mpa
boom lifting time	6.15±0.25s
total time	10.65±0.5s
fuel tank capacity	300L
function of leveling automatically	yes
service brake	air over hydraulic disc brake of 4wheels
parking brake	manual parking brake
specification	26.5-25
front tyre pressure	0.4Mpa
rear tyre pressure	0.35Mpa
