5 Ton/3m3/162kw Wheel Loader, Loaders (ZL50G)

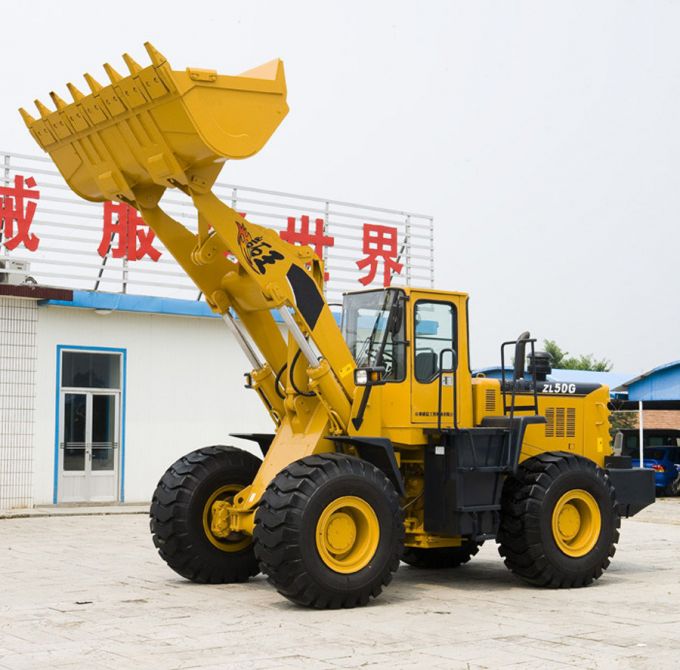

5 ton/3M3/162KW Wheel Loader ZL50G

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.
Main specifications and characters of ZL 50G loader
1, Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
2, Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable
3, Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety
4, Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise, high reliability. Double-stage air filter is standard equipment for dusty fields.
5, Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable
6, working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy
7, Pilot hydraulic implement controls make operate easy and comfortable
8, The big loading engine side covers made in steel are of good appearance and suitable for maintenance

Performance	5.0 Ton Wheel Loader ZL50G
	1	rated load	5000kg
	2	overall weight	17100kg
	3	rated bucket capacity	3m 3
	4	maximum tractive force	152KN
	5	maximum breakout force	≥ 170KN
	6	maximum grade ability	30
	7	maximum dump height	3150mm
	8	maximum dump reach	1250mm
	9	overall dimension (L × W × H)	7920 × 3050 × 3400mm
	10	minimum turning radius	6640mm
Engine	11	model	Weichai Steyr WD 615G .220
	12	type	lnline water cooling dry cylinder injection
	13	No. of cylinder-bore/stroke	6 -126 × 130mm
	14	rated power	162kw--2400r/min
	15	maximum torque	860N.m
	16	min fuel-consume ratio	≤ 215g/kw.h
Transmission system	17	torque converter	YJ375
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	2 forward shift
			1reverse shift
	20	maximum speed	38km/h
Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction,grade 1
	23	wheel base (mm)	3200mm
	24	wheel tread	2250mm
	25	minimum ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95 ± 0.2s
	28	total time	10.95 ± 0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
	32	parking brake	manual parking brake
Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
