2.5 Ton/1 M3/74HP Backhoe Loader, Backhoe Wheel Loader (WZ30-25)

2.5 Ton/1 M3/74HP Backhoe Loader, Backhoe wheel Loader (WZ30-25)

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.

We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.

The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.

We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

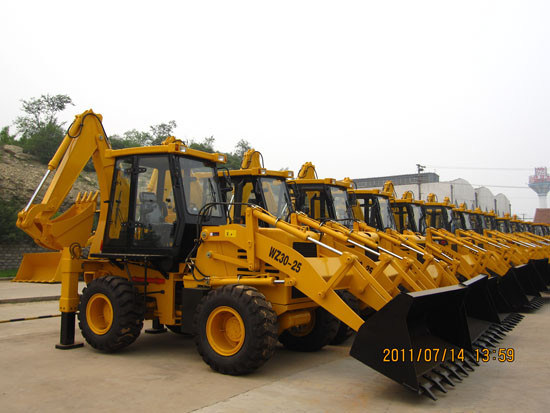

WZ30-25 backhoe loader, adopting European technology, is featured by strong power, pilot control, comfortable operation, excellent performance and high cost performance.

2.5 Ton/1 M3/74HP Backhoe Loader, Backhoe wheel Loader (WZ30-25)
Overall Dimension
Length X Width X Height	5900X 2200 X 3769(mm)
Cab roof height	2900(mm)
Wheel base	2250(mm)
Track	1640(mm)
Min. ground clearance	300(mm)

Main Technical Specification
1 system pressure
load hydraulic system	18Mpa
dig hydraulic system	20Mpa
steering hydraulic system	12Mpa
2 system flow	120L /min
3 four-wheel drive, whole hydraulic system
4 total operating weight	7600kg
5 maximum speed	22Km/h
6 maximum gradient capacity	30 °

1 loading bucket capacity	1m3
2 rated loading	2500KG
3 maximum articulated height of bucket	3400(mm)
4 bucket discharge height	2795(mm)
5 bucket discharge distance	1048(mm)
6 loading lift capacity	25KN
7 bucket hydraulic translation function	yes
8 bucket lift time	6.8s
9 bucket lower time	2.5s
10 bucket discharge time	1.2s
11 maximum tractive force	39KN
12 maximum breakout force	38KN

1 back acter bucket capacity	0.3m3
2 backacter discharge height	3878(mm)
3 maximum digging depth	4080(mm)
4 maximum digging radius	5688(mm)
5 bucket slewing angle	190 °
6 bucket digging capacity	46KN
7 bucket stick digging capacity	31KN

Diesel Engine
1 model	LUOTUO YTR 4108G 60-1
2 type	turbocharging four-stroke
3 rated power	55KW/74HP
4 rated speed	2200 r/min 24002200 r/min
5 cylinder -internal diameter	4_110 4-108
6 maximum torque	310NM 261.7N.M/1800R/MIN
7 minimum fuel consumption	245g /kw.h 216 g /kw.h
8 displacement	4.5L 4.4L

Transmission System
1 model of hydraulic pump	fixed shaft power shift transmission
2 gear shift	2forward shift 2 reverse shift
3 torque	YJ-280
4 drive pump	CDXaf3016-IL
5 flow	16ml/r
6 work pump	CBGj2063
7 flow	63ml/r

Steering System
1 type	articulated hydraulic steering
2 model of steering control valve	BZZ5-250
3 model of turning control valve	YSF25S-00
4 steering angle	left or right 36 ± 1 °
5 minimum turning radius	5018(mm)

Axles
1 main transmission type	single reduction
2 wheel reduction type	wheel reduction

Wheel
1 tire size	16/70-20
2 front wheel pressure	0.22Mpa
3 rear wheel pressure	0.20Mpa
4 service braking	air over hydraulic disc on 4 wheels
5 parking brake	manual parking brake

Refill Capacity
1 fuel tank	70L
2 transmission	25L
3 front axle	9KG
4 rear axle	9KG
5 hydraulic tank	140L
