2 Ton /1.2m3 /56kw Wheel Loader, Loaders (828-1)

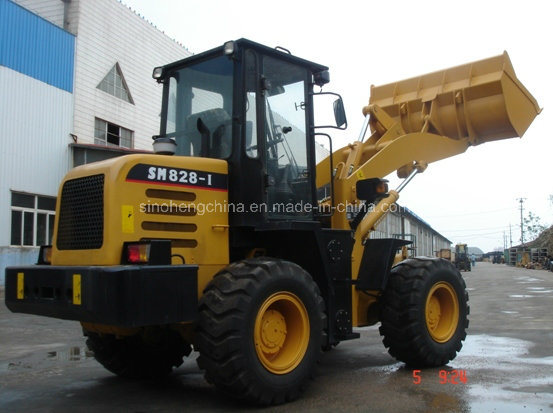

2 ton /1.2m3 /56kw Wheel Loader 828-1

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.

Detailed Product Description of wheel loader 828-1

1, Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2, High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3, Good capability in climbing the slope: 4-wheel driven, strong driving power.

Performance	Main performance parameters of 828-1wheel loader
	1	rated loading	2000kg
	2	overall weight	5800kg
	3	rated bucket capacity	1.2m 3
	4	maximum tractive force	≥54KN
	5	maximum breakout force	≥45.4KN
	6	maximum grade ability	30
	7	maximum dump height	2622mm
	8	maximum dump reach	752mm
	9	overall dimension (L×W×H)	5633×2120×2712mm
	10	minimum turning radius	5251mm
Engine	11	model	Deutz D226B-4G
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4_105×120mm
	14	rated power	56kw_2500r/min
	15	maximum torque	275N.m
	16	min fuel-consume ratio	≤243g/kw.h
Transmission system	17	torque converter	YJ_280A
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing mode	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	2400mm
	24	wheel tread	1640mm
	25	ground clearance	310mm
Hydraulic system	26	system working pressure	16MPa
	27	boom lifting time	4.8s±0.2s
	28	total time	9.2s±0.5s
	29	fuel tank capacity	80L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
	32	parking brake	flexible shaft operated external drum
Tyre	33	type specification	16/70_20
	34	front tyre pressure	0.22Mpa
	35	rear tyre pressure	0.18Mpa
