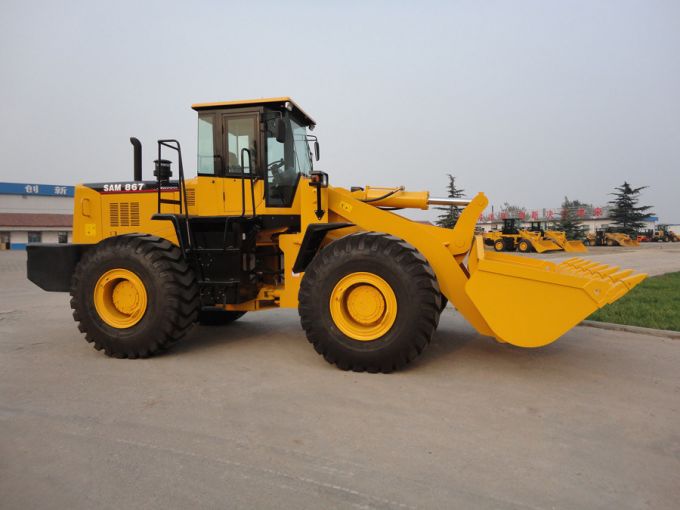

6 Ton/ 3.5 M3/175kw Wheel Loader Zl966, 6 Ton Loaders

6 Ton/ 3.5 M3/175kw Wheel Loader Zl966, 6 ton Loaders

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.
We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.
The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.
We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

Performance	6.0 Ton Wheel Loader 966
	1	rated load		6000kg
	2	overall weight		17900kg
	3	rated bucket capacity		3.5m 3
	4	maximum tractive force		152KN
	5	maximum breakout force		≥ 170KN
	6	maximum grade ability		30
	7	maximum dump height		3150mm
	8	maximum dump reach		1250mm
	9	overall dimension (L × W × H)		7920 × 3050 × 3400mm
	10	minimum turning radius		6640mm
Engine	11	model		Weichai Steyr WD615
	12	type		lnline water cooling dry cylinder injection
	13	No. of cylinder-bore/stroke		6 -126 × 130mm
	14	rated power		175kw--2400r/min
	15	maximum torque		860N.m
	16	min fuel-consume ratio		≤ 215g/kw.h
Transmission system	17	torque converter		YJ375
	18	gearbox mode (WG180 )		Power shift normally engaged straight gear
	19	gear shift	4 forward shift	8/15/23 /38
			4reverse shift	8/15/23 /38
	20	maximum speed		38km/h
Drive axles	21	main reducing spiral		bevel gear grade 1reduction
	22	decelerating mode		planetary reduction,grade 1
	23	wheel base (mm)		3200mm
	24	wheel tread		2250mm
	25	minimum ground clearance		450mm
Hydraulic system	26	system working pressure		18MPa
	27	boom lifting time		5.95 ± 0.2s
	28	total time		10.95 ± 0.5s
	29	fuel tank capacity		300L
	30	function of leveling automatically		yes
Brake system	31	service brake		air over hydraulic disc brake on 4 wheels
	32	parking brake		manual parking brake
Tyre	33	type specification		26.5-25
	34	front tyre pressure		0.4Mpa
	35	rear tyre pressure		0.35Mpa
