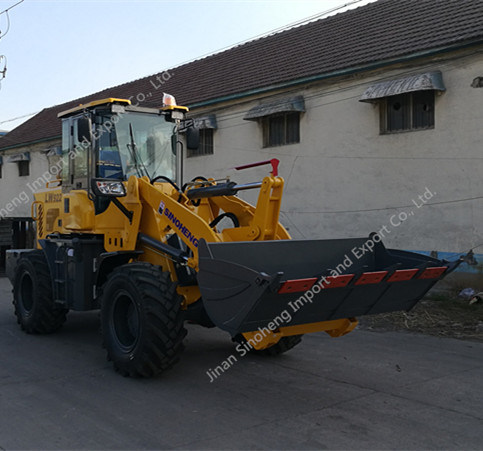

High Quality 2 Ton Wheel Loader Lw922

High Quality 2 Ton wheel loader LW922

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models LW16F, ZL20F, 836, 856, ZL50G, LW966, etc.
Detailed Product Description of wheel loader LW922
1, Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2, High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3, Good capability in climbing the slope: 4-wheel driven, strong driving power.

Specification	overall weight(kg)	5200
	L×W×H(mm)	5800×1900×2700
	bucket capacity(m3)	1.1
	Rated load(kg)	2000
	dump height(mm)	3100
	Wheelbase	2140mm
	thread	1465mm
	Max breakout force	45.4KN
	Total time	9s
	Bucket indicator	Yes
Engine	Standard engine	Changchai4G33 engine
	Type	Vertical, In-line ,Water cooling, four-strokediesel engine
	Rated power(kw)	70KW
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ265
	pattern	3 element single stage
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
	Max travel speed	24km/h
Hydraulic system	Working pump	CBG2040
	Working pressure	16Mpa
	Distribution valve	DF15.2C
Axle	Main reducer pattern	Arc taper gear, moderation of first grade
	Pattern of wheel reduction	Planet gear moderation of single
Steering system	Type	hydraulic steering
	Min turning radius(mm)	4500
	Max turning angle	35°±1
Tires	Standard tyres	16/70-20
Break system	Service brake type	Air assisted oil disc on four wheel
	Parking brake type	Soft axle control, outside bunch drum type
