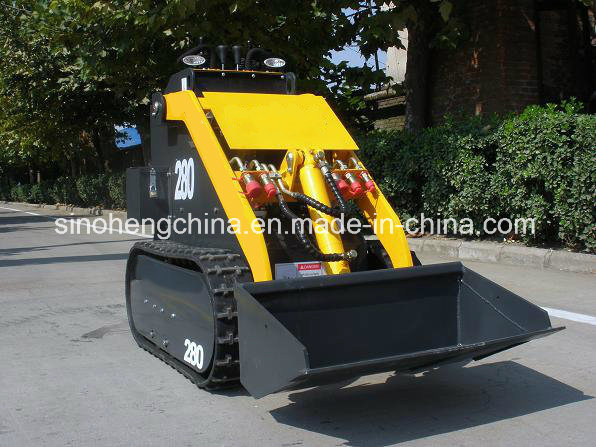

New Dingo Mini Skid Steer Loader with Good Price Hy280

Mini Loaders Skid Steers with CE certificate HY280*Smaller volume
*Tracked and wheeled models,
*Minimizes hand labor and increases productivity
*Tackles any task with a multitude of attachments
*Works with a light footprint in tight spots
*Provides reliable hydraulic power
*Tackles any task with a multitude of attachments
*Supporting more than 35 attachments.

Item	HY280
	With rubber Track
	Metric	U.S
Max working height(H3)	2065mm	81.3inch
Max pin height(H2)	1803mm	71inch
Max dumping height(H1)	1386mm	54.6inch
Max Dumping distance(E)	471mm	18.5inch
Max Dumping Angel(α3)	32º	32º
Rollback of bucket on ground(α2)	33º	33º
Departure angel(α1)	18º	18º
Total height(H)	1309mm	51.5inch
Ground clearance(F)	123mm	4.8inch
Wheel base(L1)	690mm	27.2inch
Overall length without bucket(L3)	1778mm	70inch
Total width(B2)	800mm	31.5inch
Bucket width(B1)	820mm	32.3inch
Total length with bucket(L)	2210mm	87inch
Turn radius forward turning(R)	1237mm	48.7inch
Engine
Rated Power(KW)	17.1KW(23HP)
Rotating speed(rpm)	3600
Noise(Db)	≤95
Hydraulic System
Pressure(Mpa)	17
Working Time(s)
Raise	4.27
Dump	1.34
Lower	3.31
Operating Load	165Kg	363.8Lb
Bucket Capacity	0.15m³	5.33ft³
Max Lifting Force	375Kg	827Lb
Travel Speed	0-5.5Km/h	0-3.4mile/h
Operating Weight	855KG	1884Lb
