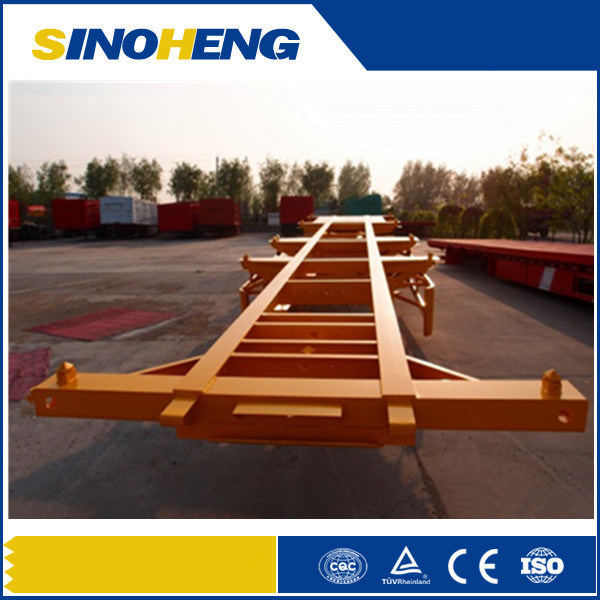

40ft 3 Axles Factory Manufacture Skeleton Container Trailer

Product Description:
1, We have well experienced in reseaching and developing different trailers: Container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2, High tensile strength steel Q345B for I-beam
3, Axle: German or American style from 12 tons to 20 tons
4, Suspension: Mechanical suspension, air suspension or bogiesuspension.
5, Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6, King pin: Optional for 2" or 3.5" Kingpin
7, Landing gear: "Jost" landing gear

Cargo container semi trailer
Assembly	Composition	Specification	Optional
Dimensions	Size(LxWxH)	12500x2490x1550mm
	Curb weight	8000kg
	Loading weight	50000kg
Chassis	Main beam	Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm.
	Cross beam	16# channel steel
	Side beam	25# channel steel
	King pin	2'' or 3.5'' traction pin	Optional JOST
	Floor	3mm diamond steel plate
	Fence	1.5m steel plate 600mm height, fence 1000mm+200mm
	Support leg	China brand 28Tons (Double speed)
Suspension	Type	Common mechanical	Optional Air suspension
	Steel spring	90(W)mm*13(Thick)mm*10 Layer
Axle	Brand	Fuwa(13000kgx3)	Optional BPW
	Wheel rim	9.0-22.5 steel wheel rim
	Tire	12.00R22.5(12 pcs)	Optional 12.00-20
Brake system	Brake chamber	WEBCO, 6 big chamber
	Brake valve	KTL/WEBCO
	Brake syste	Dual line brake system	Optional ABS
Other	Light	Tail lamp with tum signal, brake light & reflector, side lamp etc.
	Landing gear	28 Ton manual operating, heavy duty landing gear.	Optional JOST
	Tool box	1 set standard tool box
	Spare tire carrier	2 pcs
	Painting	1 coat of anticorrosive prime, 2 coats of final paint.
