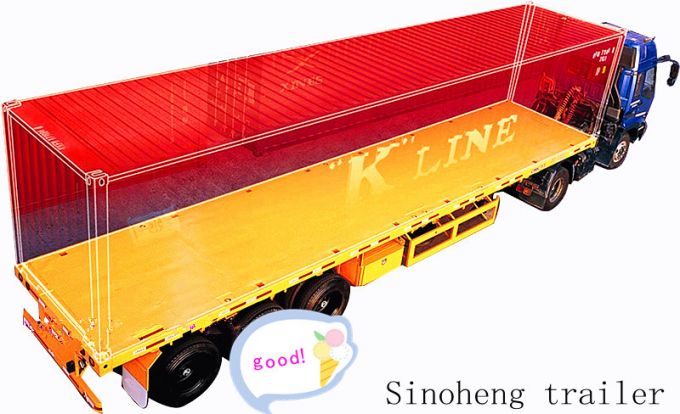

40ft 3axles Good Price Flat Bed Semi Trailer

Shipping Terms:
40ft 3axles flat bed semi trailer of good price:

Product Name: 40ft 3axles flat bed semi trailer
Product Type: Semi Trailer

Main beam:
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.

Tool box:
One piece, 1m× 0.5m× 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar).

Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.

Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Side beam	16mm or 18mm channel steel (Material is Q235 steel).
Platform	3mm diamond platform
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tank
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)

ank Trailer Details :

Our Semi Trailers :Packaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
Our tanker trailers production line :
Payment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .
Shipment pictures for your reference:
1. Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
2. or shipping by bulk cargo ship or roro ship

We could offer you good quality and best price semi trailers , you have any things that need us to help , please feel free to consult with us .
