Heavy-Duty Low Bed Trailer/Semi Trailer

  • Heavy-Duty Low Bed Trailer/Semi Trailer
  • USD 18000.00 /Unit
  • 1 Unit
  • 93 Unit
  • 19 days
Product Description
Heavy-Duty Low Bed Trailer/Semi Trailer

Heavy-duty low bed trailer, relevant specifications as follows for your reference, and we can design the low bed trailer according to your special requirements:

Suspension:
Mechanical suspension(Germany Type or America Type) OR Air suspension

Side beam:
16mm-25mm(Material is Q235 steel)

Low Bed Trailer
1. Load: 30-100T
2. Strong frame beams for heavy duty
3. We manufacturer, design as required
4. ISO9001, CCC
Weight:



Tare Weight
8000kg--13000kg

Loading Capacity
30T--100T

Axle Weight Load
13T/15T/16T/20T
Specification:


Axle number
Two,Three or Four

Axle specs.
FUWA or BPW Brand

Suspension
Common mechanical

Wheel
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 Vacunnm tire /Triangle or Double Coin Brand, etc.

King Pin
JOST 2" or 3.5" traction pin

Dimensions
(LxWxH)
13000-16000×2500-3200×2980mm

Support legs
Jost D200T

Rim
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 Vacunnm tire Zhengxing Brand

Wheelbase
7180/6680/6260+1310+1310mm,

Steel Spring
10/10/10 pieces per axle
Tire:



Number of Tire
8 or 12 or 16 pieces

Spare Tire Carriers
2 pieces
frame: (specs. and materials)


The material of
Main beam
The height of the beam is500/520mm,upper plate is18/20mm,down plate is 18/20mm,middle plate is 10/12mm.

Platform plate
5mm Diamond Plate
Brake:



Brake
Kemi Brand of China

Brake Chamber
Four double and two single chamber( TKL brand )

ABS system
without
Product Images

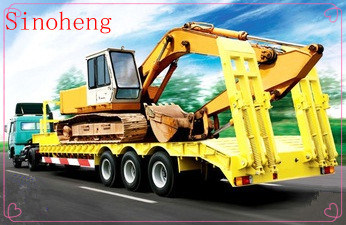

Heavy-Duty Low Bed Trailer/Semi Trailer Images 1
