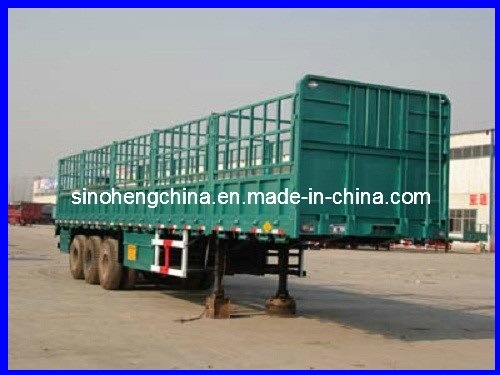

3 Axles Heavy Duty Storage Stake Cargo Semi Trailer

3 Axles Heavy Duty Storage Stake Transportation Cargo Semi Trailer Vehicle Trailers1. The design of these semi trailers, according to requirements of customers
2. You can enjoy good quality, good prices and our best service
We have other semi trailer, for example, lowbed semi trailer / flatbed semi trailer, container trailers, tanker trailers etc tansportation machinery.If you have any interest in our semi trailer, please feel free to contact with us.

Product Name	Storage Transport Semi Trailer
Model	SH9381CLX	SH9390CLX	SH9391CLX	SH9400CLX
No. of Axle	3	3	3	3
Outside Dimension L*W*H(mm)	13000*2500*3980 /3780/3580/3380	10000*2500*3700 /3300	13000*2500*3860 /3460	13000*2495*3950/ 3850/3650
Inner/Cargo Room Dimension L*W*H(mm)	12850*2350*600	9850*2290*600	12850*2390*600	12800*2280*600
Rated Loading Capacity	30(tons)	32(tons)	31(tons)	31,1(tons)
Total Weight	8(tons)	7,1(tons)	8(tons)	8,5(tons)
Wheelbase (mm)	6260+1310+1310	4840+1310+1310	6960+1310+1310	6580+1310+1310 6780+1310+1310
Tire Type	11,00R20 12,00R20	11,00R20 12,00R20	11,00R20 12,00R20	11,00R20 12,00-20
Note	From bottom to top of the stake is 2400,2200,2000, 1800mm	From bottom to top of the stake is 2200mm ,1800mm	From bottom to top of the stake is 2200mm ,1800mm	From bottom to top of the stake is 2100,2000,1800mm
