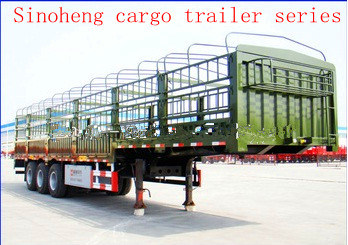

Best-Selling 3 Axles Stake Trailer/ Stake Semi Trailer

Best-selling 3 axles stake trailer/ stake semi trailer.

China hot sale 3 axles stake trailer, we can adjust the specifications as per your special requirements:
Stake trailer
1. We are manufacturer, redesign to meet your needs
2. Main beams: Heavy-duty design
3. ISO9001, CCC
Tool box:
One piece, 1m× 0.5m× 0.5m(Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar).
Painting:
Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.
Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.

Tare Weight	about 7.6T
Dimension	13000×2490×2860mm(adjustable)
Loading Capacity	40T-60T
Axle	13T/16T, FUWA/BPW /HUAJING Brand. NO.: 2/3 pieces.
Rim	9.00-22.5
Tire	12.00R22.5, 315/80R22.5
Suspension	Mechanical Suspension(Germany Type or America Type) Or Air Suspension(China brand or BPW brand)
Spring leaf	90mm(Width)×13mm(Thickness)×10(Layer) or 100mm×12mm×12
King pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legs	JOST brand D200T or China brand 28Tons(two speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345 Carbon Steel.
Side beam	16mm or 18mm channel steel(Material is Q235 carbon steel)
Side Wall	600mm-1500mm for your choice
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(Lifting type or Twist Screw type), optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways(7 wire harness)
