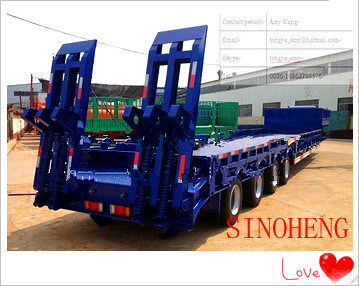

Low Bed Semi Trailer with 4 Axle

- USD 12000.00 /Unit
- 1 Unit
- 36 Unit
- 7 days
Product Description

China 4 axle low bed semi trailer, low bed for trailer, bed semi trailer:
We have 25 years of design and production experience, we have produced various types of semitrailer vehicles to meet customers' any request. Our vehicle has been sold to Russia, Kenya, the Philippines, Bolivia and so on more than 20 countries.
4 axle low bed semi trailer:
1, can load huge machinery, excavator, crane
2, we have CCC, ISO9001
3, with a pair steel ladder
Tare Weight | about 8.5-13T |
Dimension | 13000mm*3000mm-3500mm*1650mm (Size can be choose freely) |
Loading Capacity (T) | 40T-100T |
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (Special for export market) |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |
Bottom Platform | 3-6mm thickness diamond steel plate |
Ladder | Manual or Hydraulic type |
Gooseneck | For choose |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber ( TKL brand ) ; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light (Special for export market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m × 0.5m × 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Product Images
