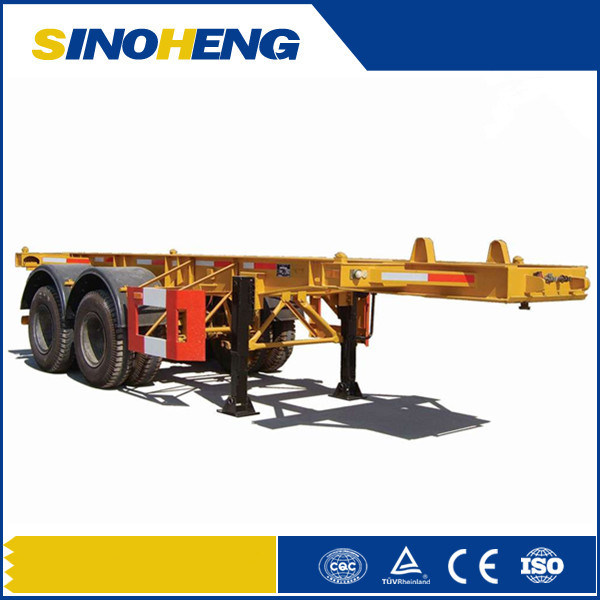

2axles 40ft Skeletal Semi Trailer

- USD 1.00 /Unit
- 1 Unit
- 65 Unit
- 15 days
Product Description
2axles 40ft skeletal semi trailer:
Product Name: 2axles 40ft skeletal semi trailer
Product Type: Semi Trailer
Main beam:
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.
Brake chamber:
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
Tool box:
One piece, 1m× 0.5m× 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.
Product Name: 2axles 40ft skeletal semi trailer
Product Type: Semi Trailer
Main beam:
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.
Brake chamber:
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
Tool box:
One piece, 1m× 0.5m× 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
