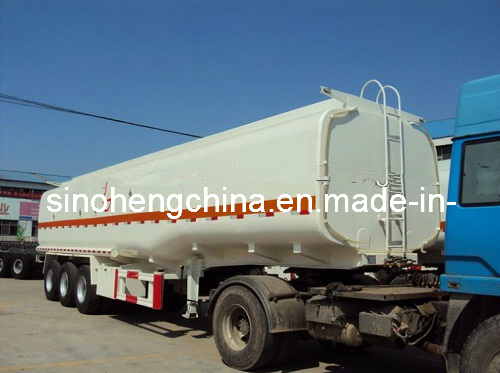

20-25m3 Oil / Fuel Tank Semi Trailers

20-25cbm SH9340gjy Oil / Fuel Tank Truck / Semi Trailer / tanker trailer / tanker transport semi trailer / vehicle tanker trailer

The oil transport semi trailer is made of steel, is light duty type. With high capacity, we profesional product semi trailers, we can product and design them, according to requirements of customer.

Technical Parameters:

Product Name	Oil Transport Semi Trailer
Model	SH9320GJY	SH9340GJY	SH9350GJY	SH9330GJY
No. of Axle	2	2	2	3
Outside Dimension L*W*H(mm)	13000*2500*3950 12500*2500*3950	13000*2500*3900	12500*2490*3800	13000*2500*3950 12500*2500*3950
Capacity(m3)	30	36	33,9	30
Rated Loading Capacity	20	23	22,6	20
Total Weight	11,9/11,55	11,2	12,4	12,75/12,5
Front suspension (mm)	700-1200	1250	1000	800/1000 1200/1400
Wheelbase(mm)	8050+1300 7650+1300	8050+1300	7700+1300	6960+1310+1310 6660+1310+1310
No. of Steel Spring	8/8, 10/10, 13/13	8/8, 10/10, 13/13	8/8, 4/4, 10/10, 13/13	8/8/8, 10/10/10
Tire Type	11,00-20	11,00-20	10,00-20 10,00R20 11,00-20 11,00R20 12,00-20	11,00-20 12,00-20
