3 Axle Flatbed Semi Trailers for Sale

- USD 1.00 /Unit
- 1 Unit
- 24 Unit
- 18 days
Product Description
3 axle flatbed semi trailers for sale, the following specifications just for your reference:
3 axle flatbed semi trailers for sale, is made from the standard steel -Q345, and Q235. frame beam is well welded by the submerged machine and polished by the shot blasting machine, so the quality is guaranteed at the very start. For export, we use the famous brand parts, such as JOST brand kinpin and landing legs, WBACO braking valve.
1. Ship by container, less cost
2.12 month quality guarantee
3 axle flatbed semi trailers for sale, is made from the standard steel -Q345, and Q235. frame beam is well welded by the submerged machine and polished by the shot blasting machine, so the quality is guaranteed at the very start. For export, we use the famous brand parts, such as JOST brand kinpin and landing legs, WBACO braking valve.
1. Ship by container, less cost
2.12 month quality guarantee
Tare Weight | 6.1T-7.6T |
Dimension | 12450×2490×1575(adjustable) |
Loading Capacity | 40T-60T |
Axle | 13T/16T, FUWA/BPW/Huajing Brand |
Rim | 9.00-22.5 flatbed trailer |
Tire | 12R22.5/315/80R22.5 |
Suspension | Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand) flatbed trailer |
Spring leaf | 90(W)×13(Thickness)×10(Layer) or 100×12×12mm |
King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
Support legs | JOST brand D200T or China brand 28Tons(double speed) |
Main beam | Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate thickness is 16mm; Material is Q345 Carbon Steel. |
Side beam | 16mm or 18mm channel steel(Material is Q235steel) |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(Lifting Type or Twist Screw Type) |
Valve | WABCO valve flatbed trailer |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |

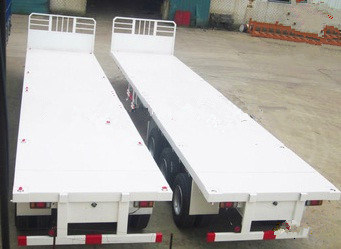

Product Images
