45ft Skeletal Semi Trailer with Skeleton Suspension

  • 45ft Skeletal Semi Trailer with Skeleton Suspension
  • USD 10200.00 /Unit
  • 1 Unit
  • 41 Unit
  • 20 days
Product Description
45ft Skeletal Semi Trailer with Skeleton Suspension

The 45ft skeleton semi trailer is one of the most popular trailers:

Product Name: 45ft skeleton semi trailer
Product Type: Semi Trailer

Brake chamber:
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks.

Tool box:
One piece, 1m× 0.5m× 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar).

Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.

Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.
Axle3 axles, 13 T FUWA /Huajing Brand
Rim9.00-22.5
Tire12.00R22.5 Chengshan Brand 12pieces
SuspensionMechanical suspension (America Type)
Spring leaf90(W)mm*13(Thickness)mm*10 Layer
King pinJOST brand 3.5inch bolts type
Support legChina brand 28Tons (Double speed)
Main beamHeight: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.
Side wallHeight is 800mm,you can choose freely.
ABSWithout
Twist LocksEight pieces (Lifting type)
ValveWABCO valve
LightLED light
Voltage24V
Receptacle7 ways (7 wire harness)
Product Images

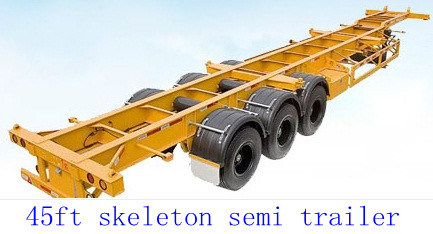

45ft Skeletal Semi Trailer with Skeleton Suspension Images 1
