Double Steering Drawbar Trailer/Full Trailer

  • Double Steering Drawbar Trailer/Full Trailer
  • USD 13500.00 /Unit
  • 1 Unit
  • 19 Unit
  • 28 days
Product Description
Double Steering Drawbar Trailer / Full Trailer/ Dolly Trailer:
Product Name: Draw bar trailer
Product Type: Full trailer

Tool box:
One piece, 1m× 0.5m× 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar).

Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.
Tare Weightabout 5.6-8T
Dimension12450mm*2490mm*1575mm (Size can be choose freely)
Loading Capacity (T)≤45 T
Axle13 T/16T, FUWA /BPW /Huajing Brand
Rim9.00-22.5
Tire12.00R22.5/ 315 80R22.5
SuspensionMechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand )
Spring leaf90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pinJOST brand 2.0 or 3.5inch bolts type or Welding type (Optional)
Or use turntable (diameter is 1.1m)
Draw Bar4*4 or 4*6mm square tube (length is 1.4m )
Tractor HookDN50
Support legWithout
Main beamHeight: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel .
Side beam16mm or 18mm channel steel ( Material is Q235steel ).
Platform3mm diamond platform
Brake chamberWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tank.
ABSOptional
Twist LocksFour ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
ValveWABCO valve
LightLED light
Voltage24V
R e ceptacle7 ways (7 wire harness)
Tank Trailer Details :
Double Steering Drawbar Trailer/Full Trailer
Our Semi Trailers :Double Steering Drawbar Trailer/Full TrailerPackaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
Our tanker trailers production line :
Double Steering Drawbar Trailer/Full TrailerPayment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .
Shipment pictures for your reference:
1. Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
2. or shipping by bulk cargo ship or roro ship

We could offer you good quality and best price semi trailers , you have any things that need us to help , please feel free to consult with us .
Product Images

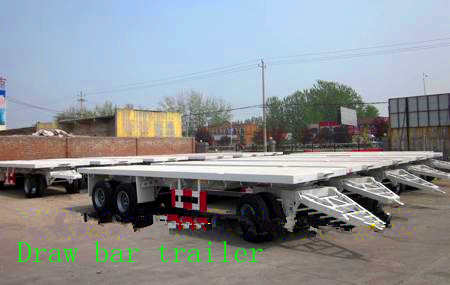

Double Steering Drawbar Trailer/Full Trailer Images 1
