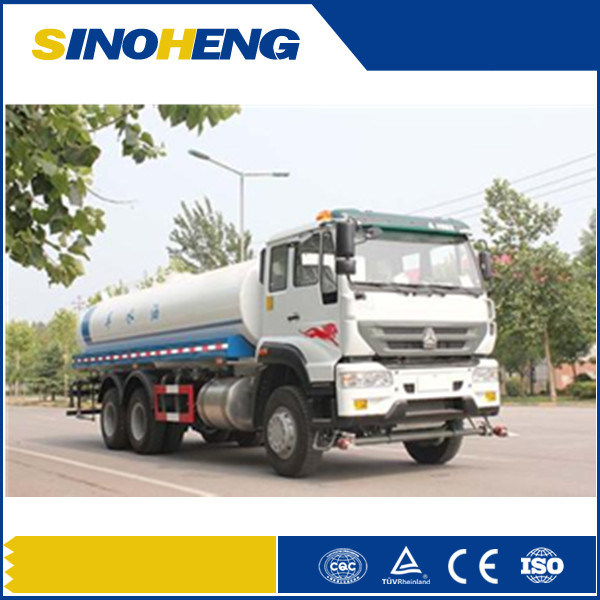

Water Storage Tank/Waste Water Truck/Water Bowser Truck

Features:
1, Products of the series have the biggest nominal volume of tank in China(up to 19cbm) and high cost performance;
2, Inner anticorrosive treatment in the tank provides a long service life;
3, Domestic well-known water pump has high pressure, wide range and high reliability;
4, All the raw materials are high quality GB steels produced bu the domestic large steel enterprises;
5, The steel plate are sandblasted on double faces with spray coating primer to guarantee the quality of welding and spray painting.
6, The tank body is CNC automatically welded which is of reliable quality and beautiful appearance;
7, Adopt the technique of baking varnish; High radiance and adhesion; Strong weather resistance; More beautiful appearance and long service life.

Configuration:
1, Standard configuration includes front jection, back sprinkling, high pressure water gun, outlet under pressure, outlet of self flowing, self absorption.
2, Optional engine driven spraying system, independent gasoline engine spraying system, etc. To realize spraying functuon.
3, Optional alarm devices, such as long or round alarm lamp, alarm and operation indicating lamp with arrows, ect.
4, Optional two-way three-bend side jection of spray gun to realize the function of road cleaning, etc.
5, Optional liquid level alarm system.
6, Optional snow shovel used for emergency snow removing in winter.

Model	JYJ5 253 GSS
Chassis model	ZZ1257M4647C
Driving form	6x4
Total mass(kg)	25000
Curb weight(kg)	12450
Engine	WD615.87(290HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling
Cab	HW76(one bed with A/C)
Transmission	HW15710(10 Forward, 2 Revise)
Front axle	HF7 (7000kg)
Driving axle	HC16 (16000kg x 2)
Steering system	ZF8098
Tire	12.00R20 (11pcs, including one spare tire)
Wheelbase(mm)	4350+1350
Front/rear Overhang (mm)	1590 / 2445
Approach/departure angle(°)	13.5 / 12
Maximum speed(km/h)	75
Number of spring leaf	10/12
