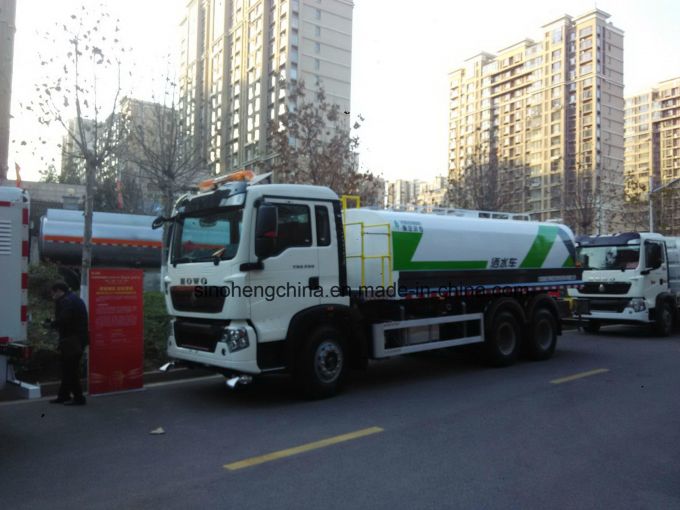

2017 Sinotruk HOWO Water Sprinkler Truck

Features:
1, Products of the series have the biggest nominal volume of tank in China(up to 19cbm) and high cost performance;
2, Inner anticorrosive treatment in the tank provides a long service life;
3, Domestic well-known water pump has high pressure, wide range and high reliability;
4, All the raw materials are high quality GB steels produced bu the domestic large steel enterprises;
5, The steel plate are sandblasted on double faces with spray coating primer to guarantee the quality of welding and spray painting.
6, The tank body is CNC automatically welded which is of reliable quality and beautiful appearance;
7, Adopt the technique of baking varnish; High radiance and adhesion; Strong weather resistance; More beautiful appearance and long service life.

Configuration:
1, Standard configuration includes front jection, back sprinkling, high pressure water gun, outlet under pressure, outlet of self flowing, self absorption.
2, Optional engine driven spraying system, independent gasoline engine spraying system, etc. To realize spraying functuon.
3, Optional alarm devices, such as long or round alarm lamp, alarm and operation indicating lamp with arrows, ect.
4, Optional two-way three-bend side jection of spray gun to realize the function of road cleaning, etc.
5, Optional liquid level alarm system.
6, Optional snow shovel used for emergency snow removing in winter.

Model	JYJ5253GSS
Chassismodel	ZZ1257M4647C
Drivingform	6x4
Totalmass(kg)	25000
Curbweight(kg)	12450
Engine	WD615.87(290HP),EuroIIemissionstandard
	Enginetype:Diesel4strokedirectinjectionengine,
	6cylinderinlinewithwatercooling,turbo-charging&intercooling
Cab	HW76(onebedwithA/C)
Transmission	HW15710(10Forward,2Revise)
Frontaxle	HF7(7000kg)
Drivingaxle	HC16(16000kgx2)
Steeringsystem	ZF8098
Tire	12.00R20(11pcs,includingonesparetire)
Wheelbase(mm)	4350+1350
Front/rearOverhang(mm)	1590/2445
Approach/departureangle	13.5/12
Maximumspeed(km/h)	75
Numberofspringleaf	10/12
