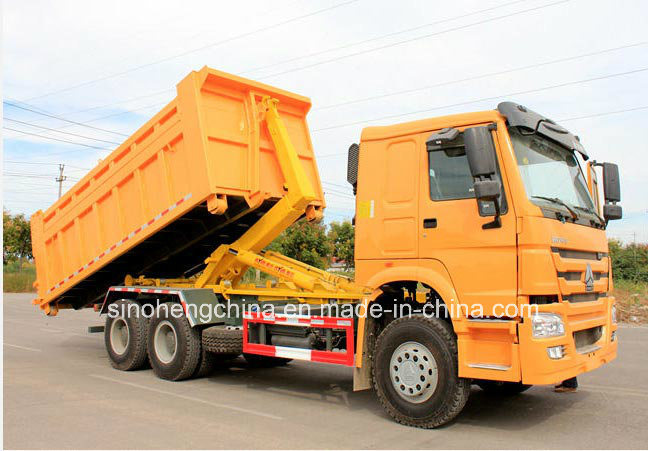

12m3 Sinotruk HOWO 6X4 Hook Lift Garbage Truck

Production description:
1. Sinotruk HOWO brand Garbage Truck 12m3, star product in our factory;
2.290HP with a dumper chassis, high strenght refuse compactor;
3. High compactor ratio and working efficiency.

Properties and Applications:
Compressed garbage truck is produced by using Germany technology, and has outstanding techniical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic degrees, quick loading speed, covenient, safe and reliable operation, and hasn't secondary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed garbage truck uses compartment and truck separation, is equipped with several compartment for one truck, and can be used as small garbage transfer station.

Chassis Model	ZZ1257M4647C
Driving Type	Left Hand Driving (Right Hand Driving is optional)
Cabin	HW76 cab, with one sleeper andtwo seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine	SINOTRUK
Transmission	HW15710, 10F & 2R, with PTO
Steering	ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle	HF9, 1x9000 KG,Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Tires	315/80R22.5, tubeless tireswith one spare tire.
Fuel Tank	400 L
Overall Dimension	9500*2550*3400 mm
