350HP 8X4 25000L Oil Tank Truck for Sale

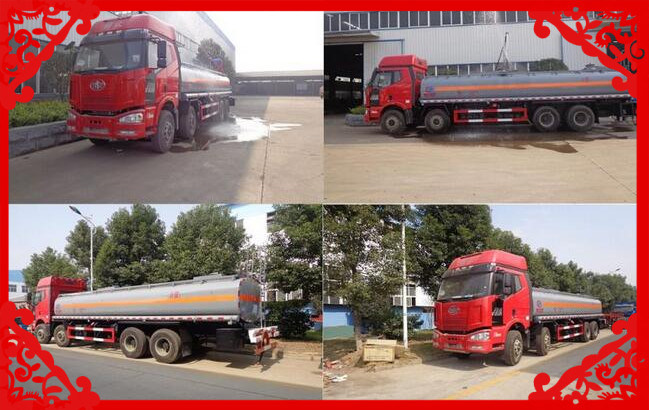

350HP 8X4 25000L Oil Tank Truck for SaleFAW J6M 350HP 8X4 heavy fuel tank truck,fuel tanker, oil/gasoline tank truck
left hand drive or right hand drive
B&V certificate
warranty 1 year
Product details:

Fuel tanker series
1 Appliedcarbon steel sheet Q235-A;stainless steel;aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.

2Apply the famous pump.

3 The main partsimplements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.

4Sub crossbeam apply rectangle steel sheetthat thickness more than 5mm, stick out in one time.

5Fire extinguisherreplaced on the back of the truck for the emergency.

6Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.

7According to customer's needs:

A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.

B> The tank can be designed as a single compartment or several compartments.

C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.

D> At the end or side of tank, It can be installed 1-3 self-flow valve.

E> You can chosse the type of the inlet and outlet (Europ standard or normally
Workshop :

25000L Oil Tank Truck Technical Parameters

FAW J6M 350HP 8X4 heavy fuel tank truck, fuel tanker, oil/gasoline tank truck
Engine model	CA6DL1-32E4
Cylinder	6
Max output power	238KW
Power	320HP
Displacement	7.7L
Standard	Euro III
Engine type	In line water cooled, 4 stroke
Transimission model	CA10TA130M
Gear box speed	10
Chassis brand	FAW J6M
Chassis model	CA5310GYYP63K2L6T4A2E4
Front axkes	9tons
Rear axles	457, ABS)
Leaf spring quantity	3/3/11, 10/10/11
Tyre quantity	12
Tyre size	11.00R20
Front track	1950/1950mm
Rear track	1847/1847mm
Drive type	8X4
Wheelbase	1950+4550+1350mm
Vehicle size	11.9X2.5X3.454m
F/R hang	1.400/2.650m
Rated mass	16.91t
Curb weight
Max speed	90km/h
Vehicle model	CLW5311GYYP63K2L6T4A2E4
Vehicle type	Fuel tank truck
Update brand	Chengli wei
Made	In china
Tanker volum	30000L to 40000L
Tanker thickness	5mm
Transmission material	Diesel, gasline

Moreinformationofourfuel tanker/fuel tank truck,pleasefeelfreetocontactwith us , we will design the truck according to your requirements .
Looking forward to your consults !
