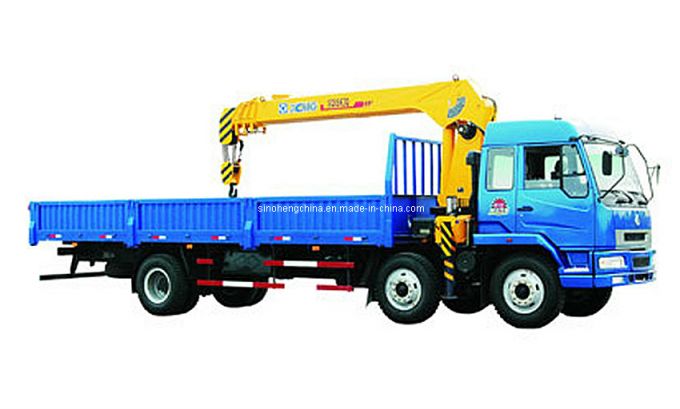

JAC 8 Ton Truck Mounted Crane, Cranes (SQ8SK3Q)

JAC 8 Ton Truck Mounted Crane, Cranes (SQ8SK3Q)

JAC truck mounted crane inherits the "safety, environment-friendly, reliability and taking the lead" design and production concept. We provides specific solutions in accordance with customers' demand with its advanced technology. JAC truck mounted cranes are widely used in shipping, railway and non-excavating industry by transformation design and extension. It is much adored by customers in different industries. Its market rate is continuously rising and stably ranks first in China.
Max Lifting Capacity8000kg
Max Lifting Moment20T. M
Recommend Power28kw
Max Oil Flow of Hydraulic System55L/min
Max Pressure of Hydraulic System27MPa
Oil Tank Capacity160L
Rotation AngleAll Rotation
Crane Weight3300kg
Installation Space1200mm

Model	SQ8SK3Q	Unit
Max Lifting Capacity	8000	kg
Max Lifting Moment	20	T.M
Recommend Power	28	kw
Max Oil Flow of Hydraulic System	55	L/min
Max Pressure of Hydraulic System	27	MPa
Oil Tank Capacity	160	L
Rotation Angle	All Rotation
Crane Weight	3300	kg
Installation Space	1200	mm
Choice of Chassis	CA1176PK2L9T3A95;CA1170PK2L7T3EA80;CA1240PK2L7T4EA81;HFC1202KR1K3; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; CA1200PK2L7T3EA80; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S;CA1253P7K2L11T1E; EQ1252GFJ;

SQ8SK3Q Lifting capability diagram
Working radius (m)	2.5	4.5	7	9	11.5
Lifting capacity (kg)	8000	4400	2500	1750	1100
