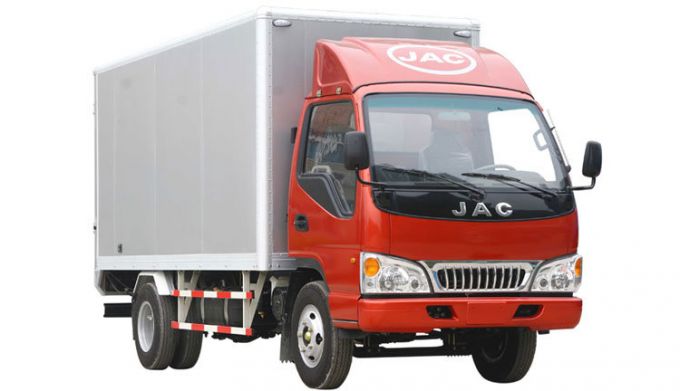

JAC L-Series 6t Light Truck

JAC L-Series Truck
—Good Quality for Customers.
JAC's light-duty trucks are developed over many years of R&D based on advanced European and Asian platform technologies.

Exterior

Elegant Design
The styling, interior trim and power train are the results of JAC's 50 years of manufacturing expertise. The fashionable design and overall performance, including engine power, drive control, economics and comfort, exceed those of like products in China. The trucks come in different wheel bases of 2490 mm, 2800 mm, 3000 mm, 3308 mm and 3360 mm with single, one and a half and double seats in order to meet customers' trucking demands.

Interior


Performance
The engine, gearbox and transmission shaft are based on Asia's advanced technology, providing powerful and efficient operation.

A reinforced chassis and front and rear axles using Asia's advanced technology, represent the highest standard of international light trucks.

Safety
The rear drive shaft is designed with Asia's advanced technology full-float single reducer, duo-curve gear, and whole-piece stamping and welding with a section diameter of 106*106*7 and 6.142 speed ratio, giving it a stronger and safer loading capacity than other products.

The 'I' shape front axle made out of forged-steel which utilizes Asia's advanced technology, with strong anti-curving features, a 60*70*8 in dimension, and a wheelbase of 1440mm gives the vehicle a higher loading capacity compared to other products.

Specification

Model				HFC1042K1F
Engine (HFC 4DA1)				HFC4DA1
Cab				Sing
(L/R)Hand				L
	Overall Dimensions			5995*1900*2250
Size	Chassis Dimensions(mm)			5835*1695*2174
	Box size(inner)(mm)			4230*1790*400
	Wheelbase(mm)			3360
	Tread (front / rear )FT/RT (mm)			1440/1425
	FF/RF (mm)			1105/1530
	Chassis FF/RF (mm)			1105/1370
	Min Ground Clearance(mm)			198
	frame ground clearance H1 (mm)			703
	Cab wide W1 (mm)			1695
Quality	GVW(Kg)			5740
Parameters	Curb Weight (Kg)			2610
	Play load(Kg)			3130
	Chassis Weight(Kg)			2250
	Front axle/Rear axle(Kg)			1400/1200
Performance	Max speed(Km/h)			105
Parameters	Maximum Gradeability(%)			30
	Min Turing Radius(m)			7
Main Configuration	Engine	Model		HFC4DA1-2C
		Emission		IV
		Type		Common Rail+DOC+POC
		Max power(Kw/rpm)		85/3600
		Max torque		250/1800-2800
		Displacement(cc)		2771
	Clutch	Type		Drysingle plate withdiaphragm spring
		Diameter		Φ250
		Clutch assis		×
		tance type
	Transmission	Model		LC5T28
		Gear Position		1 3 5
				2 4 R
		Ratio	I	4.717
			II	2.513
			III	1.679
			IV	1
			V	0.784
			VI	×
			R	R4.497
	Front Axle	Model		3000D8002
		Axle capacity(Kg)		2000
	Rear axle	Model		2400D8870
		Rear axle ratio		5.571
		Axle capacity(Kg)		4000
	Steering	Steering		recirculating ball-type
		Power steering		√
	Suspension	Type		front/rear leaf spring
		Leaf springnumber(front/rear)		7/4+6
		Rear axle stabilizer bar		×
	frame	Wf(front/rear)(mm)		630/700
		frame Section Size(Hf*Wf*Hf)(mm)		170×65×5
	Oil tank	Fuel tankmaterial		plastic
		Fuel tankcapacity (L)		100
	Brake	Type		hydraulic brake
		Dryer		×
		Drum diameter(front/rear)		Φ320/Φ320
		ExhaustBraking		√
		SABS		×
		ABS		×
	Tire	Model		7.00R16
				12PR
				6.50R1
				6 10PR
	Cargo	Iron cargo		√
		Bamboo cargo
Electrical		Batteries		12V-
				100Ah
		Alternator		14V
				90A
		Starter		12V
				2.8kw
