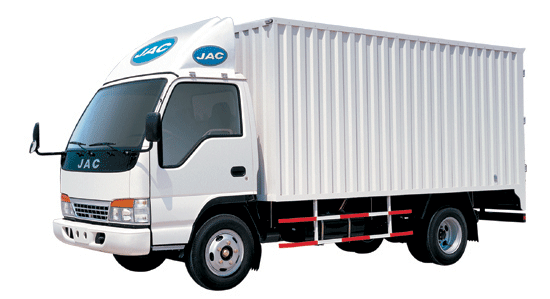

JAC Van Truck 5 Tons
- Price can be negotiated
- 1 Unit
- 67 Unit
- 9 days
Product Description
Specifications
JAC RHD Van truck
Chassis brand: JAC
Loading capacity: 5ton
Horsepower: 120hp
Right-hand-drive
JAC RHD Van truck
Chassis brand: JAC
Loading capacity: 5ton
Horsepower: 120hp
Right-hand-drive
Item | unit | parameter | ||
Vehicle model | | JAC Van Truck ( RHD/LHD) | ||
Chassis model | | HFC1048K | ||
Overall dimensions | mm | 5910*2096*2250 | ||
Van dimension | | 4130*1960*400 | ||
| GVW | kg | Approx7680 | |
Mass in working order | Approx 2680 | |||
Loading capacity | 5000 | |||
Wheel base | mm | 3308 | ||
F/R track base | 1665/1525 | |||
Approach/departure angle | ° | 23/14 | ||
Exhaust/hp | ml/kw | 3856/88 | ||
Max speed | km/h | 95 | ||
Tire | | 7.00-16 | ||
Traction system | 4X2 | Number of axles | 2 | |
Electric system | 24v | Allowable passengers in cab | 3 | |
Engine Type | CY4102BZLQ | |||
Production Cycle | 5-7 days | |||
Equipment | Van Material: Corrugated Iron ( Also can choose other material Color Steel Plate, Aluminium Alloy) | |||
The Style of door open: Rear open ( Also can choose to add left door, right door) | ||||
Warranty | 12 month, from the date of supply |
