JAC Hfc3251kr1 290HP 6X4 Dump Truck
- USD 35000.42 /Unit
- 1 Unit
- 72 Unit
- 21 days
Product Description
Dump Truck SPECIFICATION | ||
Half Height Roof Cab,tilt cab | Drive mode | HFC3251KR1 |
Model | 6×4 | |
Engine | Model | WD615.50 |
(cc)Displacement | 9726 | |
(Hp/rpm)Max output power | 290/2200 | |
(N.m/rpm)Max torque | 1160/1500 | |
Transmission | Model | 9JS150T-B+QH50 |
gear ratio | 8 forward, 1 back | |
Clutch | Mode | Single plate,dry,screw spring |
Rear Axle | Model | Steyr Technology |
Main parameter | (mm)Overall Dimension | 8265 ×2500×3500 |
(mm)Wheel base | 3690+1350 | |
(mm)Tread | 2040/1860 | |
(mm)Suspension arm | 1495/1730 | |
(Kg)Curb weight | 13350 | |
(Kg)Rated payload | 20000 | |
(Kg)GVW | 33350 | |
(Km/h)Max speed | 80 | |
Radius of turning (M) | 10 | |
cargobox | cargo box dimension(mm) | 5.2*2.3*1.3M MIDDLE LIFTING |
Tire | 12.00R20 | |
Steering system | Power steering | |
Brake system | Mode | Dual-circuit air brake |
Brake slack adjust | Automatic adjust | |
conditioner | YES | |
Emissions standards | EUR II |

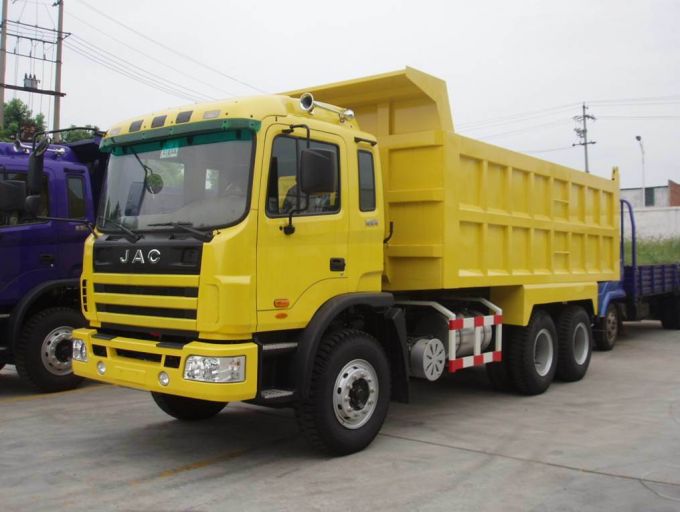

Product Images
