Specification 6*4 290HP Hfc3251kr1 Dump Truck

  • Specification 6*4 290HP Hfc3251kr1 Dump Truck
  • USD 45000.55 /Unit
  • 1 Unit
  • 44 Unit
  • 28 days
Product Description
Dump Truck SPECIFICATION

Half Height Roof Cab,tilt cab
Drive modeHFC3251KR1
Model6×4

Engine
ModelWD615.50
(cc)Displacement9726
(Hp/rpm)Max output power290/2200
(N.m/rpm)Max torque1160/1500

Transmission
Model9JS150T-B+QH50
gear ratio8 forward, 1 back

Clutch
Mode,,
Single plate,dry,screw spring

Rear Axle
Model
Steyr Technology

Main parameter
(mm)Overall Dimension8265 ×2500×3500
(mm)Wheel base3690+1350
(mm)Tread2040/1860
(mm)Suspension arm1495/1730
(Kg)Curb weight13350
(Kg)Rated payload20000
(Kg)GVW33350
(Km/h)Max speed 80
Radius of turning (M)10
cargoboxcargo box dimension(mm)5.2*2.3*1.3M MIDDLE LIFTING
Tire12.00R20
Steering systemPower steering

Brake system
ModeDual-circuit air brake
Brake slack adjustAutomatic adjust
conditionerYES
Emissions standardsEUR II

Specification 6*4 290HP Hfc3251kr1 Dump TruckSpecification 6*4 290HP Hfc3251kr1 Dump TruckSpecification 6*4 290HP Hfc3251kr1 Dump Truck
Product Images

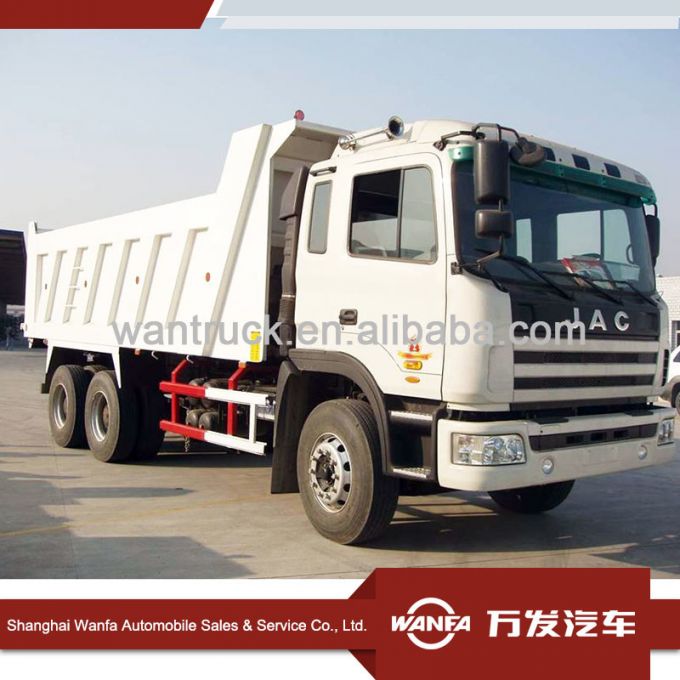

Specification 6*4 290HP Hfc3251kr1 Dump Truck Images 1
