JAC Hfc3160kr1 4X2 190HP Dump Truck

Product Description


Model				HFC3160KR1
Series number				G3041
Drive mode				4×2
Main technical parameters	Size Parameter	Overall dimension(L×W×H) (mm)		7065×2495×3200
		Wheelbase(mm)		4000
	Refitted Part	Cargo inner dimension (mm)		4500×2300×(800+400)
	Quality Parameters	GVW(Kg)		16000
		Chassis weight(Kg)		5860
		Curb Weight(Kg)		9920
		Rated load (kg)		6080
	Main configuration	Cab	Type
			Seat	General seat
			AC	standard
			Heater	standard
			Electric glass	standard
			CD	optional
			MP3	standard
			Electronic control flip	/
		Engine	Model	CA6DF2D-19
			Emission levels	E
			Max output power(hp/rpm)	190/2300
			Max torque(N·m/rpm)	680/1400~1600
			Displacement (cc)	6557
		Clutch	Mode	Single, dry plate, diaphragm spring
			Specification	Φ395
		Transmission	Mode	CA6T138-85
			Gear position	1 3 5 R 2 4 6

			Gear ratio	7.285/0.783
			PTO	standard
		Front axle	Modle	style break face
			Maximum capacity(Kg)	5000
		Rear axle	Mode	457
			Ratio	6.33/5.833
			Maximum capacity (Kg)	13000
		Steering	Type	Power steering with domestic Steering gear
		Oil	Fuel tank material	Iron
			Fuel tank capacity (L)	150
		Brake	Type	Dual-circuit air brake
			ABS	/
			ASR	/
		Tire	Model	10.00R20

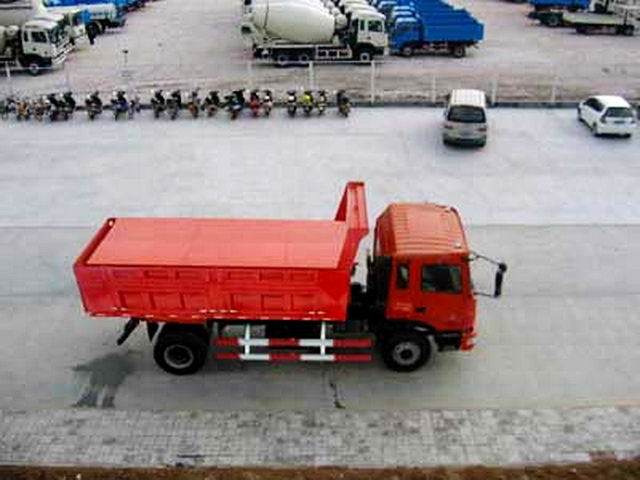

Product Images
