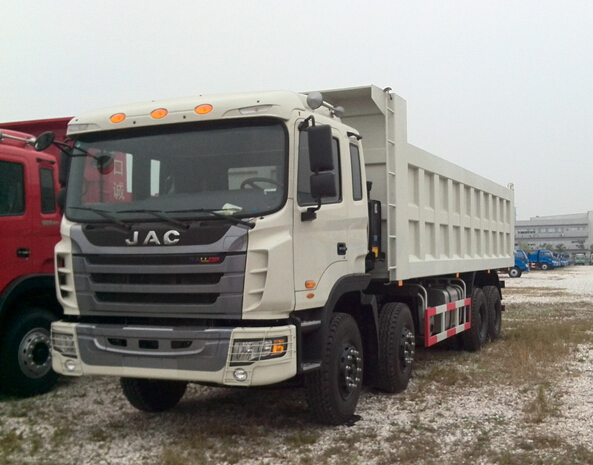

JAC 8X4 380HP Dump Truck / Tipper Truck

JAC Heavy Duty Truck
Excellent Value, the New Epoch of Chinese Heavy Truck
JAC heavy-duty truck integrates global advanced technology. According to the different
markets, we innovate and optimize our products endlessly and continue to enrich our
lineup to satisfy various road conditions and our costumers' demands, enabling JAC
heavy truck to become a high-end heavy truck in the international market.
Safety
The white body shell is designed in accordance with European safety standards. The energy absorption zone structure increases the anti-collision capability, thus guaranteeing passive safety;
Highly reliable
All of the chassis components have undergone CAE finite element analysis to ensure the chassis strength. The strong chassis ensures security under high loading and fast speed working conditions;
Impressive Fuel Efficiency and Environmental Performance
JAC heavy-duty trucking customers have found that they offer impressive fuel economy. Depending on load, road and driving style, it may be the best choice. Aerodynamic design feature, streamlined shape and curved surface contribute to less air drag and better fuel economy.
Local Modification for All Kinds of Environments and Temperatures
For maintaining outstanding performance in different environments and temperatures, JAC heavy trucks have been modified for alpine areas, high-temperature regions, low-temperature regions, and desert areas.
A complete range to choose from
JAC heavy-duty trucks are available with a variety of outputs and with Euro 4, Euro 3 and Euro 2 emission levels. This makes it possible for you to enjoy the unique styling, the special feeling and all the benefits of JAC heavy -duty trucks with an engine that fits your needs exactly.

Model									HFC3310KR1LT
Drive mode									8×4
Main technical parameters	Size Parameter	Overall dimension(L×W×H) (mm)							11025*2550*3450
		Cargo inner dimension (mm)							8000×2300×1500
		Wheelbase(mm)							1800+4100+1350
		(/)Front Tread/Rear Tread (mm)							2040/1880
		(/)FF/AF(mm)							1495/2255
		frame front/rear Width (mm)							940/860
		frame Section Size (Hf*Wf*Hf)(mm)							322*100*(8+10)
	Quality Parameters	GVW/GCW(Kg)							60000
		/GVW/GCW of Front axle/Rear axle(Kg)							16230/43770
		Chassis weight(Kg)							11450
		/ Chassis weight of Front axle/Rear axle(Kg)							/
		Curb Weight(Kg)							18450
		Maximum Gradeability(%)							28
		Radius of turning (m)							11
		Fuel consumption (L/km/h)							≤40
	Main configuration	Cab		Type					N944
				Seat					air seat
				Engine guard					standard
				Shroud					optional
				AC					standard
				Heater					standard
				Electric glass					standard
				CD					optional
				MP3					standard
				Cabin suspension					2 springs in front and 2 springs in rear
				Electronic control flip					optional
				Copilot visor					optional
				Radiator protection frame					standard
		Engine		Model					WP10.380E32 WP10.340E32
				Emission levels					E-III
				/ Max output power(hp/rpm)					380/2200 340/2200
				/ Max torque(N·m/rpm)					1460/1200-1600 1350/1200-1600
				Displacement (cc)					9726
				Oil pump					Domestic
									optional
									standard
				Pre-heater					standard
		Clutch		Mode					,, Single, dry plate, diaphragm spring
				Specification					Φ430
		Transmission		Mode					12JSD180+QH70/12JSD180T+QH70
				Gear position					R2/R1 7/1 9/3 11/5 8/2 10/4 12/6
				Gear ratio		I			15.53
						II			12.08
						III			9.39
						IV			7.33
						V			5.73
						VI			4.46
						VII			3.48
						VIII			2.71
						IX			2.1
						X			1.64
						XI			1.28
						XII			1
						RL			14.86
						RH			3.33
				PTO					Standard QH70
		Front axle		Modle					" I"style break face
				Maximum capacity(Kg)					7500
		Rear axle		Mode					Benz Technology
				Ratio					4.76/5.26/5.92
				Maximum capacity (Kg)					16000
		driveshaft		Specification					Φ140×6
		Steering		Type					ZF Power steering with ZF Steering gear
Oil		Fuel tank material					Aluminum alloy
		Fuel tank capacity (L)					400
Brake		Type					Dual-circuit air brake
		/(mm) Drum Specification front/rear					Φ410*156/Φ410*220
		Exhaust assisted braking					standard
		Inter-wheel differential lock					standard
Tire		Model					12.00R20,11.00R20,12R22.5
(/)Suspension		Type					parapolic leaf spring 9/12
		Parapolic leaf spring size					1500×90/1700×90
		Front axle stabilizer bar					/
		Rear axle stabilizer bar					standard
Electrical System		Batteries					12 volt-140Ah×2
		Alternator					24 volt/60 amp
		Starter					24 volt/5.4 kW
