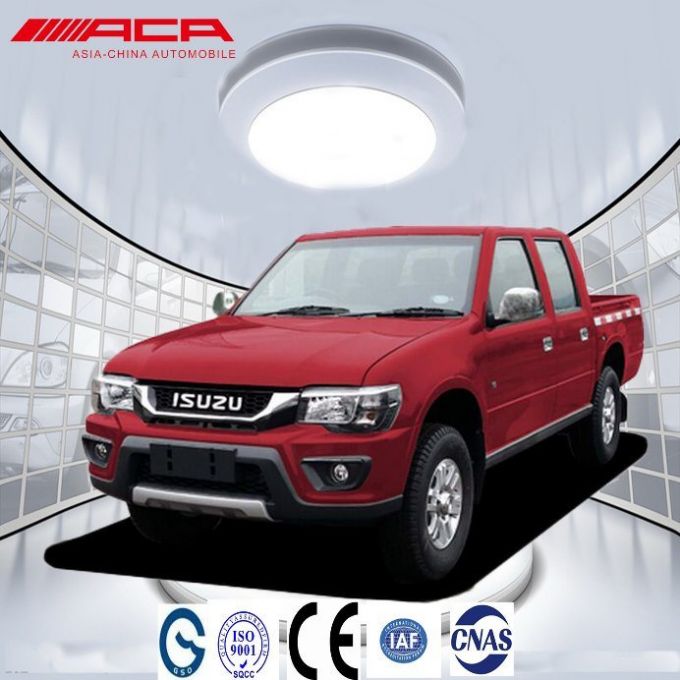

Isuzu 4X2 2.8t Diesel Pickup

Technical Data

vehicle model				QL10307GDRB	QL10207GDRC	QL10307GDSC	QL10207GDRD	QL1020XGDRA		QL5020XXYXGLSE	QL5020XXYNGCSC	QL1020NGDSC	QL1020NGDSC	QL5020XXYNGCSC
Driving Type				4X4	4X2	4X4	4X2	4X2		4X4	4X4	4X4	4X4	4X4
weight	gross weight		kg	2655	2455	2615	2305	2490		2600	2465	2465	2490	2410
	Rated quality		kg	800	600	600	450	600		500	600	600	600	600
	Curb weight		kg	1530	1530	1690	1530	1565		1770	1540	1540	1565	1485
Axle base			mm	3025	3025	3025	3025	3025		3025	3025	3025	3025	3025
Vehicle	Length		mm	4975	4975	4975	4975	4975		4975	4975	4975	4975	4975
Shape	Width		mm	1690	1690	1690	1690	1690		1690	1690	1690	1690	1690
Size	height		mm	1640	1640	1680	1640	1680		1795	1795	1795	1680	1640
Carriage inner dimension	Length		mm	1486	1486	1486	1486	1486		1535	1490	1490	1486	1486
	Width		mm	1470	1470	1470	1470	1470		1495	1540	1540	1470	1470
	height		mm	447	447	447	447	447		1080	1080	1080	447	447
Engine	Model			4JB1-TCT					4KH1-TC1		4ZE3-MPI
	Emission			Euro3
	Power	kW/rpm		70/3400					96		89/4600
	Torque	N.m/rpm		206/1700					280		203/2600
Fuel				Diesel							Gasoline
the highest speed of design		km/h		130							130
passengers				2+3							2+3
Tire specifications				P215/75R15,LT235/75R15							LT215/75R15,P215/75R15,LT235/75R15

QingLing Motors (Group) Co., Ltd. is one of the leading automobile manufacturers in Chongqing, China(one of four Municipalities in China, the other three are Beijing,Shanghai, Tianjin), and is also a large scale automobile group taking QingLing Motors Co., Ltd. as its backbone, and listed in oversea - 14 important subsidiaries, factories, one R&D centre, in total build up by 16 substitutes. The former company was QingLing Vehicle Manufacture Company. Until 1969 QingLing is engaged in the manufacturing of N and T series light commercial trucks.

By 1985, QingLing became a Sino-foreign joint venture enterprise with Isuzu Company from Japan. In 1994, approved by the Central Government, QingLing Motors Co., Ltd issued stock shares abroad as the first such experimental enterprise of Chinese automobile industry, and was restructured as a state-owned international public company and the convertible bonds was also sold abroad in 1997. Isuzu Company increased capital and shared expansion to QingLing Motors in 2005, agreed by both parties to operate the business and cooperating with each other, insight on deepening technique, management, marketing, capital control and process, growing and enhancing the core competitiveness of the enterprise.

QingLing Motors group has transformed traditional industries by using advances technologies, completing a manufacturing system with development features, forming a complete production process chain which started from blank,spare part,assembly manufacturing and vehicle assembly. Including the three basic blanks-casting, forging and aluminum casting as well as the six main assemblies - engine, cabin and gearbox, etc and set up technical supports such as Technical Development Centre, Mould Centre, forging die centre and physicochemical centre etc.

Main products of QingLing Motors groups are: Isuzu series of light, medium and heavy commercial Vehicles, 5 series of diesel engines from power 77HP to 380HP and its same series gasoline engine. QingLing Motors product have always been the leading level of the commercial vehicle market in China, always to be recognized by the market and its customer and become the quality standard of the industry. The world's most advanced technology, quality products are the unique competitive advantages to QingLing Motors.

QingLing Motors has products for domestic and oversea market. Domestic market: firstly the main seam customers of certain key industries. Listed as specialized logistics, oil, post, telecom, telecommunication, financial, electric, tobacco, and so on; Secondly, high added value for modified car customer. Such as municipal, environmental sanitation, fire, mine, cold storage, airport services and so on. For oversea markets: business area extends from Isuzu company from Japan to many well-known companies in Europe and multinational corporations.

In recently years, QingLing Motors Group insists to reduce cost and increase product quality while persisting in the world's advanced technology and quality level, which to conquer the key challenges with high quality and high price of the international brand commercial vehicles. All series are converted to be the high quality and middle price. QingLing Motors Group has a fundamental change in the consumer market and its customer groups. Market areas expanded from the eastern coastal developed areas to vast market potential space, the vast areas of the Western inland. Customer groups expand from monopoly industries, such as large logistic companies and modify vehicle enterprises and other high-end customers to Mid-market ordinary customers scattered forming high and midrange combination pattern of customer groups. QingLing Motors has entered to a new stage of full, leap-forward development.

Within 20 years, QingLing Motors received awards in national, provincial and municipal levels of 281 items. There are 65 items at national level, 175 items at Chongqing city level, and 41 items at Sichuan provincial level. In 2010, QingLing has"2010 China top 500 Machinery and top 10 Truck", the 5th position of the Lorry's top 10 list.

And Chongqing Asia-China Automobile Sales Co., Ltd maintain friendship with Qingling Motor Company since 2014, mainly for the oversea marketing.
